Search › Model › GSJ15

GSJ15

Toyota FJ-CRUISER · 2006 · 4,222 parts · 196 categories

4,222 items

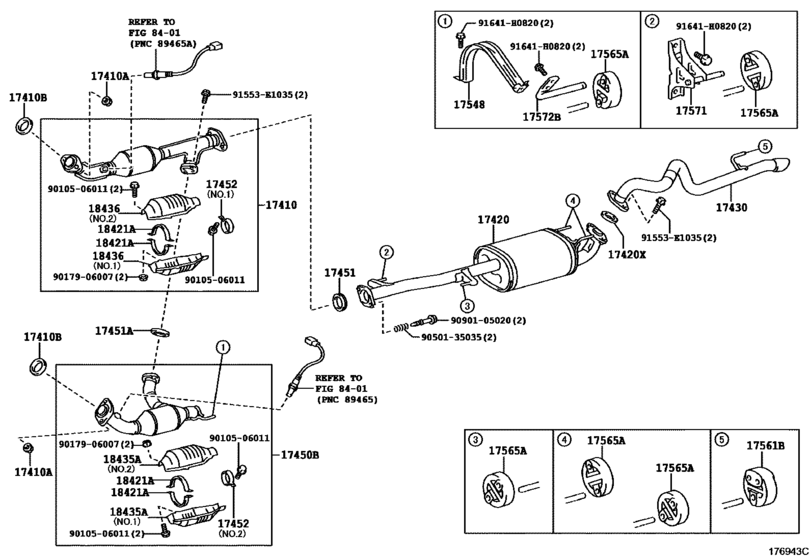

Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA) 27

#	OEM	Part name
0	91553-E1035	BOLT FLANGE
17410	17410-31A20	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06089	Gasket, Exhaust Pipe
17420	17420-31460	Pipe Assy, Exhaust, Center
17420	90917-06090	Gasket, Exhaust Pipe
17430	17430-30041	Pipe Assy, Exhaust, Tail
17450	17450-31121	Pipe Assy, Exhaust, Front No.2
17451	17451-31020	Gasket, Exhaust Pipe
17452	90461-12350	Clamp, Exhaust Pipe
17452	90461-12353	Clamp, Exhaust Pipe
17548	17548-31011	Bracket, Exhaust Pipe Stopper
17561	17565-31050	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17571	17571-50140	Bracket, Exhaust Pipe Support, No.1
17572	17572-31110	Bracket, Exhaust Pipe Support, No.2
18421	18421-75010	Stay, Converter Protector, Lh
18435	18435-31030	Protector, Monolithic Converter
18435	18445-31020	Protector, Monolithic Converter
18436	18435-31040	Protector, Monolithic Converter, No.1
18436	18445-31030	Protector, Monolithic Converter, No.1
91641	91641-H0820	Bolt
9010506011	90105-06011	BOLT
9017906007	90179-06007	Nut
9050135035	90501-35035	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-31A20	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17420-31460	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17430-30041	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17450-31121	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17451-31020	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17548-31011	Bracket, Exhaust Pipe Stopper	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17571-50140	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
17572-31110	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
18421-75010	Stay, Converter Protector, Lh	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
18435-31030	Protector, Monolithic Converter	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
18435-31040	Protector, Monolithic Converter, No.1	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
18445-31020	Protector, Monolithic Converter	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
18445-31030	Protector, Monolithic Converter, No.1	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90105-06011	BOLT	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90179-06007	Nut	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90461-12350	Clamp, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
91553-E1035	BOLT FLANGE	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)
91641-H0820	Bolt	Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA)

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 196
Collected: 2026-08-02
