GSJ15

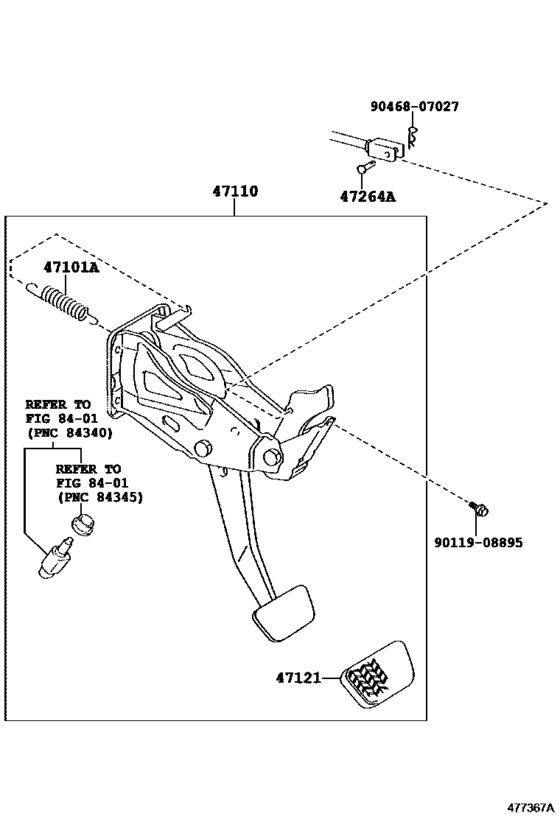

Brake Pedal & Bracket ([01.2010 - ] (1001- )) 7
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-20033 | Spring(For Brake Pedal Return) |
| 47110 | 47110-35130 | Support Assy, Brake Pedal |
| 47110 | 47110-35131 | Support Assy, Brake Pedal |
| 47121 | 47121-50020 | Pad, Brake Pedal |
| 47264 | 90240-06027 | Pin(For Push Rod) |
| 9011908895 | 90119-08895 | BOLT WWASHER |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-35130 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 47110-35131 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 47121-50020 | Pad, Brake Pedal | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 90119-08895 | BOLT WWASHER | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 90240-06027 | Pin(For Push Rod) | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
| 90507-20033 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([01.2010 - ] (1001- )) |
