Search › Model › GSJ10

GSJ10

Toyota FJ-CRUISER · 2006 · 4,971 parts · 230 categories

4,971 items

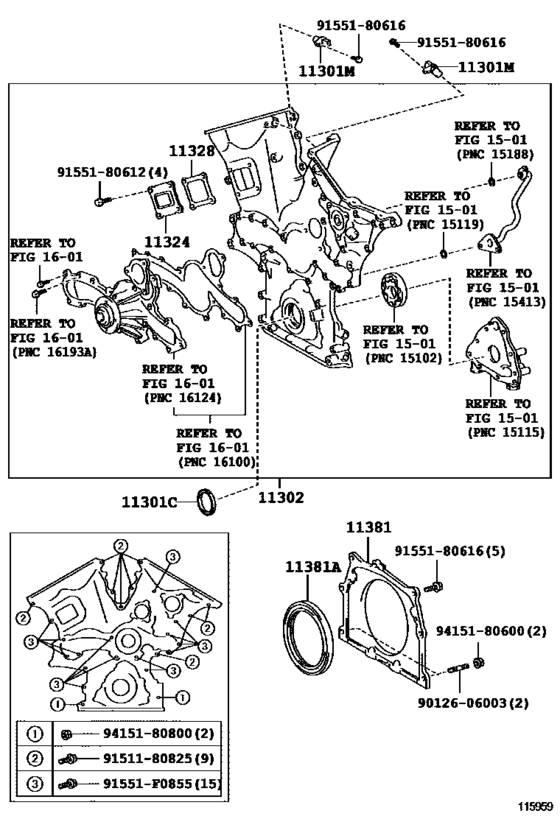

Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908)) 20

#	OEM	Part name
11301	90311-42037	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-42045	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-42048	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05060	Sensor, Cam Position
11302	11310-31013	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-31014	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-31030	Cover Sub-Assy, Timing Chain Or Belt
11324	11324-31020	Plate, Timing Chain Cover
11328	11328-31030	Gasket, Timing Gear Or Chain Cover
11381	11381-31010	Retainer, Engine Rear Oil Seal
11381	90311-99010	Seal, Engine Rear Oil
11381	90311-A0006	Seal, Engine Rear Oil
91551	91551-F0855	Bolt(For Cylinder Head Set Sub)
9012606003	90126-06003	Bolt, Stud(For Oil Strainer)
9012606003	90126-06021	Bolt, Stud(For Oil Strainer)
9151180825	91511-80825	BOLTFLANGE
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9155180616	91551-80616	BOLT FLANGE
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
11310-31013	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
11310-31014	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
11310-31030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
11324-31020	Plate, Timing Chain Cover	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
11328-31030	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
11381-31010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90126-06003	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90126-06021	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90311-42037	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90311-42045	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90311-42048	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90311-99010	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90311-A0006	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
90919-05060	Sensor, Cam Position	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
91511-80825	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
91551-F0855	Bolt(For Cylinder Head Set Sub)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
94151-80800	Nut (For Transmission Control Cable)	Timing Gear Cover & Rear End Plate ([01.2006 - 08.2009] (0601-0908))
