Search › Model › GSJ10

GSJ10

Toyota FJ-CRUISER · 2006 · 4,971 parts · 230 categories

4,971 items

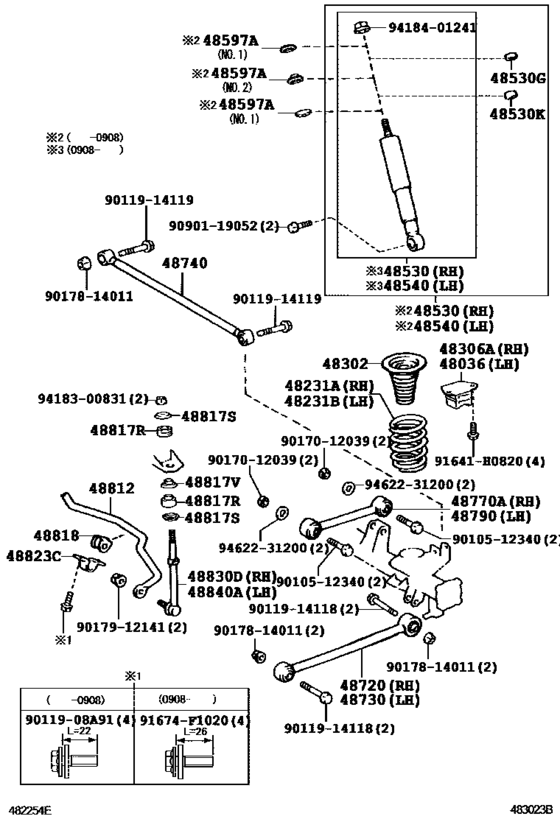

Rear Spring & Shock Absorber ([01.2006 - ] (0601- )) 44

#	OEM	Part name
48036	48306-60180	Bumper Sub-Assy, Rear Spring, Lh
48231	48231-35330	Spring, Coil, Rear Rh
48231	48231-35331	Spring, Coil, Rear Rh
48231	48231-35430	Spring, Coil, Rear Rh
48302	48302-35040	Spring Sub-Assy, Hollow
48530	48530-80354	Absorber Assy, Shock, Rear Rh
48530	48530-80460	Absorber Assy, Shock, Rear Rh
48530	48530-80538	Absorber Assy, Shock, Rear Rh
48530	48530-80608	Absorber Assy, Shock, Rear Rh
48530	48505-60090	Cushion, Rear Shock Absorber, No.1
48530	90948-01087	Cushion, Rear Shock Absorber, No.1
48530	48505-60100	Cushion, Rear Shock Absorber, No.2
48530	90948-01088	Cushion, Rear Shock Absorber, No.2
48597	48597-60070	Retainer, Rear Shock Absober Cushion
48597	48597-60080	Retainer, Rear Shock Absober Cushion
48720	48720-35060	Arm Assy, Lower Control
48720	48720-35061	Arm Assy, Lower Control
48740	48740-35040	Rod Assy, Rear Lateral Control
48740	48740-60160	Rod Assy, Rear Lateral Control
48770	48710-35050	Arm Assy, Upper Control
48812	48812-60220	Bar, Stabilizer, Rear
48812	48812-60300	Bar, Stabilizer, Rear
48817	48817-30020	Rear stabilizer link cushion
48817	48817-36011	Cushion, Stabilizer Link
48817	90948-02126	Retainer, Cushion, No.1(For Rear Shock Absorber)
48817	90948-02127	Retainer, Cushion, No.2(For Rear Shock Absorber)
48818	48815-14130	Bush, Front Stabilizer Bar, No.1
48818	48818-60050	Bush, Stabilizer, Rear
48823	48823-35060	Cover, Rear Stabilizer Bracket
48823	48823-60050	Cover, Rear Stabilizer Bracket
48830	48830-60030	Link Assy, Rear Stabilizer
91641	91641-H0820	Bolt
91674	91674-F1020	BOLT FLANGE
9011908	90119-08A91	BOLT WWASHER
9010512340	90105-12340	BOLT, FLANGE
9011914118	90119-14118	BOLT W-WASHER
9011914119	90119-14119	BOLT W-WASHER
9017012039	90170-12039	NUT HEXAGON
9017814011	90178-14011	Nut(For Suspension Lower Arm Shaft)
9017912141	90179-12141	Nut(For Front Stabilizer Link)
9090119052	90901-19052	BOLT WWASHER
9418300831	94183-00831	NUT LOCK
9418401241	94184-01241	Nut(For Front Support To Front Shock Absorber)
9462231200	94622-31200	WASHER PLATE

OEM	Part name	Category
48231-35330	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48231-35331	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48231-35430	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48302-35040	Spring Sub-Assy, Hollow	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48306-60180	Bumper Sub-Assy, Rear Spring, Lh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48505-60090	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48505-60100	Cushion, Rear Shock Absorber, No.2	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48530-80354	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48530-80460	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48530-80538	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48530-80608	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48597-60070	Retainer, Rear Shock Absober Cushion	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48597-60080	Retainer, Rear Shock Absober Cushion	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48710-35050	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48720-35060	Arm Assy, Lower Control	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48720-35061	Arm Assy, Lower Control	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48740-35040	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48740-60160	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48812-60220	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48812-60300	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48815-14130	Bush, Front Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48817-30020	Rear stabilizer link cushion	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48817-36011	Cushion, Stabilizer Link	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48818-60050	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48823-35060	Cover, Rear Stabilizer Bracket	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48823-60050	Cover, Rear Stabilizer Bracket	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
48830-60030	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90105-12340	BOLT, FLANGE	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90119-08A91	BOLT WWASHER	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90119-14118	BOLT W-WASHER	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90119-14119	BOLT W-WASHER	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90170-12039	NUT HEXAGON	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90178-14011	Nut(For Suspension Lower Arm Shaft)	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90179-12141	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90901-19052	BOLT WWASHER	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90948-01087	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90948-01088	Cushion, Rear Shock Absorber, No.2	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90948-02126	Retainer, Cushion, No.1(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
90948-02127	Retainer, Cushion, No.2(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
91641-H0820	Bolt	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
91674-F1020	BOLT FLANGE	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
94183-00831	NUT LOCK	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
94184-01241	Nut(For Front Support To Front Shock Absorber)	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))
94622-31200	WASHER PLATE	Rear Spring & Shock Absorber ([01.2006 - ] (0601- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 230
Collected: 2026-08-02
