GSJ10

Toyota FJ-CRUISER · 2006 · 4,971 parts · 230 categories
GSJ10 ×

← Back to categories

4,971 items

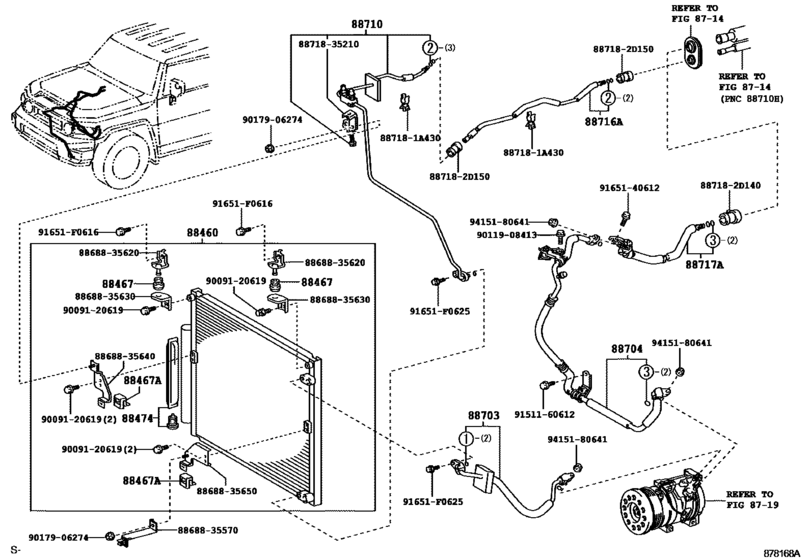

Heating & Air Conditioning - Cooler Piping ([01.2006 - 08.2009] (0601-0908)) 32
#OEMPart name
88460 88460-35380 Condenser Assy, Cooler
88467 88467-28050 Cushion, Cooler Condenser, No.1
88467 88467-35080 Cushion, Cooler Condenser, No.1
88474 88474-17010 Dryer, Cooler
88703 88703-35050 Hose Sub-Assy, Discharge
88703 88703-35052 Hose Sub-Assy, Discharge
88703 88703-35051 Hose Sub-Assy, Discharge
88704 88704-35080 Hose Sub-Assy, Suction
88704 88704-60370 Hose Sub-Assy, Suction
88710 88710-35660 Tube Assy, Air Conditioner - AIRCONDITIONER
88716 88716-35740 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6B740 Pipe, Cooler Refrigerant Liquid, A
88717 88707-60180 Tube Assy, Air Conditioner
88717 88717-35240 Pipe, Cooler Refrigerant Suction, A
91651 91651-F0616 BOLT
91651 91651-F0625 BOLT WWASHER
887181 88718-1A430 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8868835570 88688-35570 Bracket, Cooler Condenser, No.1
8868835620 88688-35620 Bracket, Cooler Diaphragm
8868835630 88688-35630 Bracket, Cooler Diaphragm
8868835640 88688-35640 Bracket, Cooler Diaphragm
8868835650 88688-35650 Bracket, Cooler Diaphragm
8871835210 88718-35210 Pipe, Cooler Refrigerant Suction, No.2
9009120619 90091-20619 BOLT
9011908413 90119-08413 New Genuine Part
9017906274 90179-06274 Nut
9151160612 91511-60612 BOLT
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9415180641 94151-80641 NUT FLANGE
