Search › Model › GSJ10

GSJ10

Toyota FJ-CRUISER · 2006 · 4,971 parts · 230 categories
GSJ10 ×

← Back to categories

4,971 items

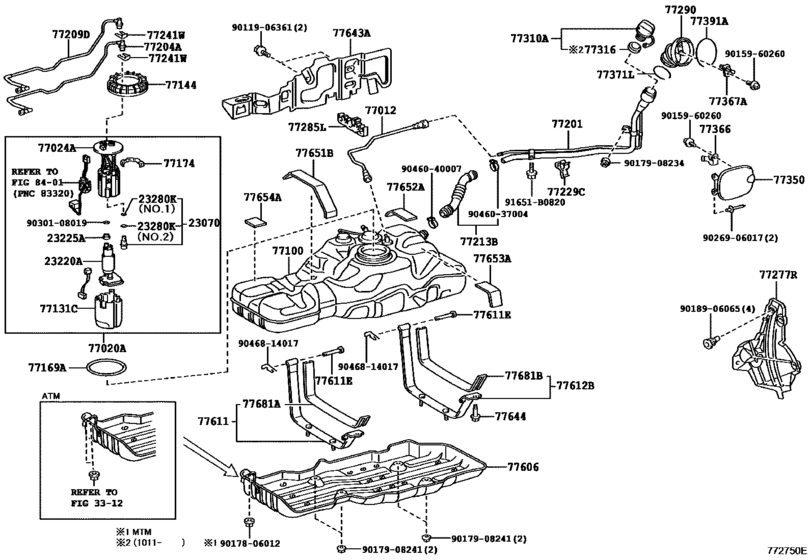

Fuel Tank & Tube ([08.2009 - ] FUEL TANK (0908- )) 70
#OEMPart name
23070 23070-31010 Valve Assy, Fuel Main
23220 23220-31430 Pump Assy, Fuel W/filter
23225 23225-23010 Spacer, Fuel Pump
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-08020 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77012 77012-35070 Tube Sub-Assy, Fuel Tank Breather
77020 77020-35120 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-35121 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-35170 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-35171 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-35040 Plate Sub-Assy, Fuel Suction
77024 77024-35070 Plate Sub-Assy, Fuel Suction
77100 77001-3D550 Tank Assy, Fuel
77100 77001-3D551 Tank Assy, Fuel
77131 77131-26112 Bracket, Fuel Tank Filler Pipe Support
77131 77131-60090 Sub-Tank, Fuel, No.1
77131 77131-60140 Bracket, Fuel Tank Filler Pipe Support
77144 77144-35010 Retainer, Fuel Pump Gauge
77169 77169-30050 Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77169 77169-35010 Gasket, Fuel Suction Tube Set
77174 77174-26010 Support, Fuel Suction, No.1
77174 77174-60020 Support, Fuel Suction, No.1
77201 77201-35800 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-35840 Pipe Sub-Assy, Fuel Tank Inlet
77204 77204-35080 Tube, Fuel Tank Return
77209 77209-35450 Tube Sub-Assy, Fuel Tank Main
77213 77213-35370 Hose, Fuel Tank To Filler Pipe
77213 77213-35371 Hose, Fuel Tank To Filler Pipe
77229 77229-60070 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77277 77277-35030 Protector, Fuel Tank Filler Pipe
77277 77277-35031 Protector, Fuel Tank Filler Pipe
77285 77285-35620 Clamp, Fuel Tube, No.1
77290 77291-35140 Shield Assy, Fuel Tank Filler Pipe
77310 77300-52040 Cap Assy, Fuel Tank
77316 77316-52020 Gasket, Fuel Tank Cap
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-35060 Lid Assy, Fuel Filler Opening
77366 77366-35030 Spring, Fuel Filler Opening Lid Hinge
77367 77367-35020 Clamp, Fuel Filler Lid Pin, No.1
77371 77371-35010 Ring, Fuel Tank Filler Pipe Shield
77391 77391-12010 Ring, Fuel Inlet Box
77606 77606-35070 Protector Sub-Assy, Fuel Tank, No.1
77611 77601-35110 Band, Fuel Tank
77611 77653-35040 Pin (For Fuel Tank Band)
77612 77602-35050 Band, Fuel Tank, No.2
77643 77643-35050 Protector, Fuel Tank, No.3
77644 77644-35030 Bolt, Fuel Tank
77651 77651-35070 Cushion, Fuel Tank
77652 77652-35060 Cushion, Fuel Tank, No.2
77653 77653-35050 Cushion, Fuel Tank, No.3
77654 77654-35010 Cushion, Fuel Tank, No.4
77681 77681-35060 Seat, Fuel Tank Band
77681 77681-35040 Seat, Fuel Tank Band
77681 77681-35041 Seat, Fuel Tank Band
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011906361 90119-06361 BOLT WWASHER
9015960260 90159-60260 SCREW
9017806012 90178-06012 NUT FLANGE
9017908234 90179-08234 NUT
9017908241 90179-08241 NUT
9018906065 90189-06065 CLIP
9026906017 90269-06017 RIVET
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9046037004 90460-37004 New Genuine Part
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046814017 90468-14017 Clip, No.2(For Parking Brake)
