GSJ10

Toyota FJ-CRUISER · 2006 · 4,971 parts · 230 categories
GSJ10 ×

← Back to categories

4,971 items

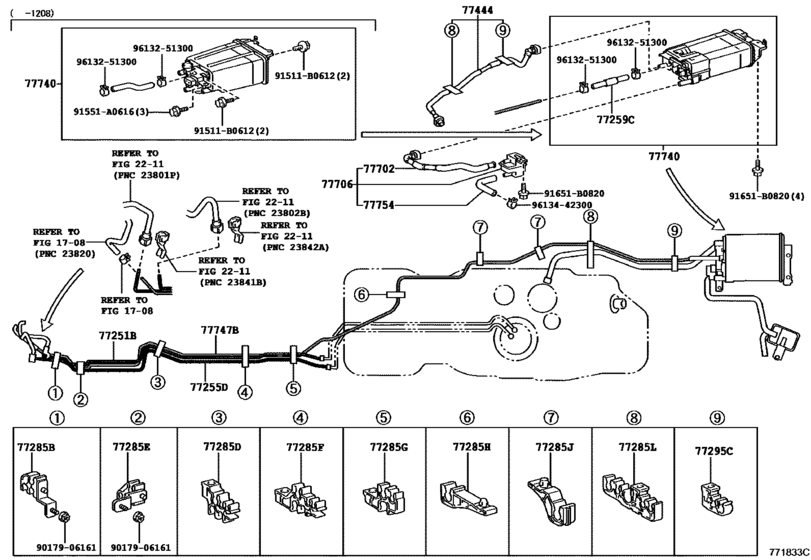

Fuel Tank & Tube ([01.2006 - ] FUEL TUBE (0601- )) 32
#OEMPart name
77251 77251-35A00 Tube, Fuel Main
77251 77251-3D460 Tube, Fuel Main
77255 77255-3D080 Tube, Fuel Return
77255 77255-60B80 Tube, Fuel Return
77259 77259-35500 Hose, Fuel
77285 77285-35631 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35641 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-35690 Clamp, Fuel Tube, No.1
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-35710 Clamp, Fuel Tube, No.1
77285 77285-35620 Clamp, Fuel Tube, No.1
77295 77295-60320 Grommet, Fuel Tube - FUEL HOSE
77444 77404-35030 Hose, Fuel Tank Vent
77444 77404-35070 Hose, Fuel Tank Vent
77702 77702-60020 Hose Sub-Assy, Canister Outlet, No.2
77706 77706-60020 Filter Sub-Assy, Charcoal Canister
77740 77740-35511 Canister Assy, Charcoal
77740 77740-35530 Canister Assy, Charcoal
77740 77740-35531 Canister Assy, Charcoal
77740 77740-35540 Canister Assy, Charcoal
77747 77747-35050 Tube, Charcoal Canister, No.1
77747 77747-35090 Tube, Charcoal Canister, No.1
77754 77754-60280 Hose, Charcoal Canister Outlet, No.1
91511 91511-B0612 BOLT FLANGE
91551 91551-A0616 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613442300 96134-42300 Clip Or Clamp(For Ventilation Hose)
