GSC15

Lexus RC · 2014 · 4,422 parts · 200 categories

← Back to categories

4,422 items

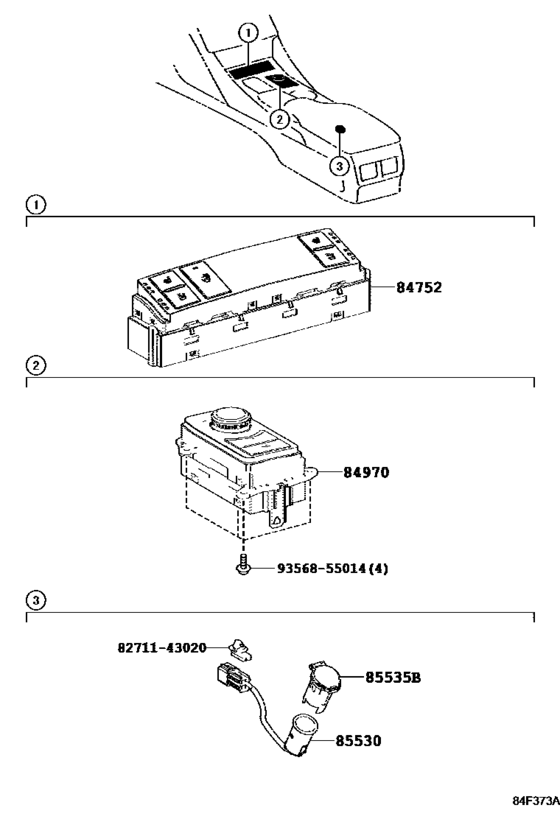

Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- )) 10

#	OEM	Part name
84752	84752-24010	Switch, Refreshing Seat
84752	84752-24020	Switch, Refreshing Seat
84752	84752-24030	Switch, Refreshing Seat
84752	84752-24040	Switch, Refreshing Seat
84970	84970-24010	Switch Assy, Combination
84970	84970-24020	Switch Assy, Combination
85530	85530-24010	Socket Assy, Power Outlet, No.1
85535	85535-30020	Cover, Power Outlet Socket, No.1
8271143020	82711-43020	Wire, Fuse To Fuse(for Combustion Heater)
9356855014	93568-55014	Screw

OEM	Part name	Category
82711-43020	Wire, Fuse To Fuse(for Combustion Heater)	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84752-24010	Switch, Refreshing Seat	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84752-24020	Switch, Refreshing Seat	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84752-24030	Switch, Refreshing Seat	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84752-24040	Switch, Refreshing Seat	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84970-24010	Switch Assy, Combination	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
84970-24020	Switch Assy, Combination	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
85530-24010	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
85535-30020	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
93568-55014	Screw	Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL 2/2 (1409- ))
