GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

4,179 items

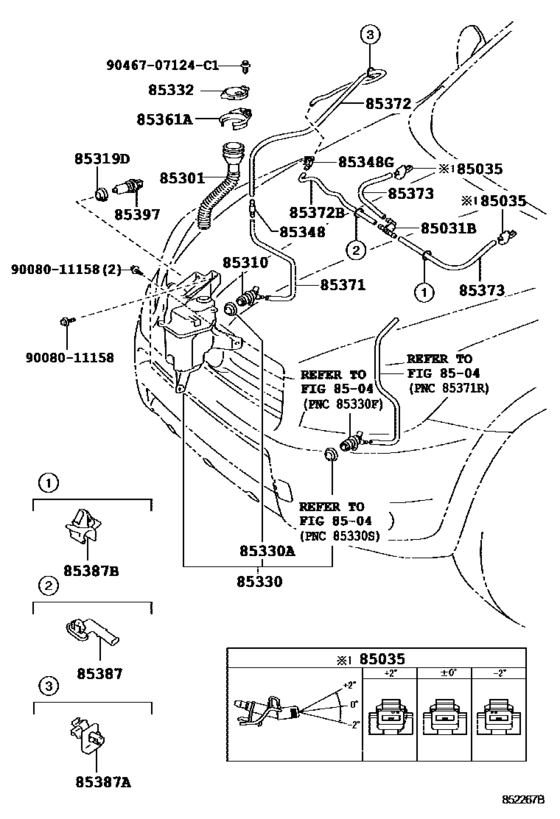

Windshield Washer ([11.2008 - ] (0811- )NAP) 24

#	OEM	Part name
85031	85321-28020	Valve Sub-Assy, Washer
85035	85381-12300	Nozzle Sub-Assy, Washer
85035	85381-12310	Nozzle Sub-Assy, Washer
85035	85381-12320	Nozzle Sub-Assy, Washer
85301	85319-42230	Inlet Sub-Assy, Washer
85310	85330-47010	Motor And Pump Assy, Windshield Washer
85319	85319-AA020	Packing, Front Washer
85330	85315-0R010	Jar Assy, Windshield Washer
85330	85336-60300	Bush, Windshield Washer Jar
85332	85316-48060	Cap, Windshield Washer Jar
85348	85375-0E010	Valve Sub-Assy, Washer No.2
85348	85376-0R020	Joint, Windshield Washer Hose, No.2
85361	85337-42232	Bracket, Windshield Washer, No.1
85371	90068-33045	Hose, Windshield Washer (From Motor To Joint)
85372	90068-33093	Hose, Windshield Washer (From Joint To Joint), No.1
85372	90068-33011	Hose, Windshield Washer (From Motor To Joint)
85372	90068-33017	Hose, Windshield Washer (From Motor To Joint)
85373	90068-33094	Hose, Windshield Washer (From Joint To Nozzle)
85387	82711-10500	Clamp No.1 (For Windseield Washer)
85387	85371-32020	Clamp, Washer, No.2
85387	90469-07011	Clamp No.1 (For Windseield Washer)
85397	85397-AA040	Switch Assy, Washer Level Warning
9008011158	90080-11158	Bolt, Hexagon (For Shift Lever Plate)
9046707124	90467-07124-C1	CLIP

OEM	Part name	Category
82711-10500	Clamp No.1 (For Windseield Washer)	Windshield Washer ([11.2008 - ] (0811- )NAP)
85315-0R010	Jar Assy, Windshield Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85316-48060	Cap, Windshield Washer Jar	Windshield Washer ([11.2008 - ] (0811- )NAP)
85319-42230	Inlet Sub-Assy, Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85319-AA020	Packing, Front Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85321-28020	Valve Sub-Assy, Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85330-47010	Motor And Pump Assy, Windshield Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85336-60300	Bush, Windshield Washer Jar	Windshield Washer ([11.2008 - ] (0811- )NAP)
85337-42232	Bracket, Windshield Washer, No.1	Windshield Washer ([11.2008 - ] (0811- )NAP)
85371-32020	Clamp, Washer, No.2	Windshield Washer ([11.2008 - ] (0811- )NAP)
85375-0E010	Valve Sub-Assy, Washer No.2	Windshield Washer ([11.2008 - ] (0811- )NAP)
85376-0R020	Joint, Windshield Washer Hose, No.2	Windshield Washer ([11.2008 - ] (0811- )NAP)
85381-12300	Nozzle Sub-Assy, Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85381-12310	Nozzle Sub-Assy, Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85381-12320	Nozzle Sub-Assy, Washer	Windshield Washer ([11.2008 - ] (0811- )NAP)
85397-AA040	Switch Assy, Washer Level Warning	Windshield Washer ([11.2008 - ] (0811- )NAP)
90068-33011	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([11.2008 - ] (0811- )NAP)
90068-33017	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([11.2008 - ] (0811- )NAP)
90068-33045	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([11.2008 - ] (0811- )NAP)
90068-33093	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([11.2008 - ] (0811- )NAP)
90068-33094	Hose, Windshield Washer (From Joint To Nozzle)	Windshield Washer ([11.2008 - ] (0811- )NAP)
90080-11158	Bolt, Hexagon (For Shift Lever Plate)	Windshield Washer ([11.2008 - ] (0811- )NAP)
90467-07124-C1	CLIP	Windshield Washer ([11.2008 - ] (0811- )NAP)
90469-07011	Clamp No.1 (For Windseield Washer)	Windshield Washer ([11.2008 - ] (0811- )NAP)
