GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

← Back to categories

4,179 items

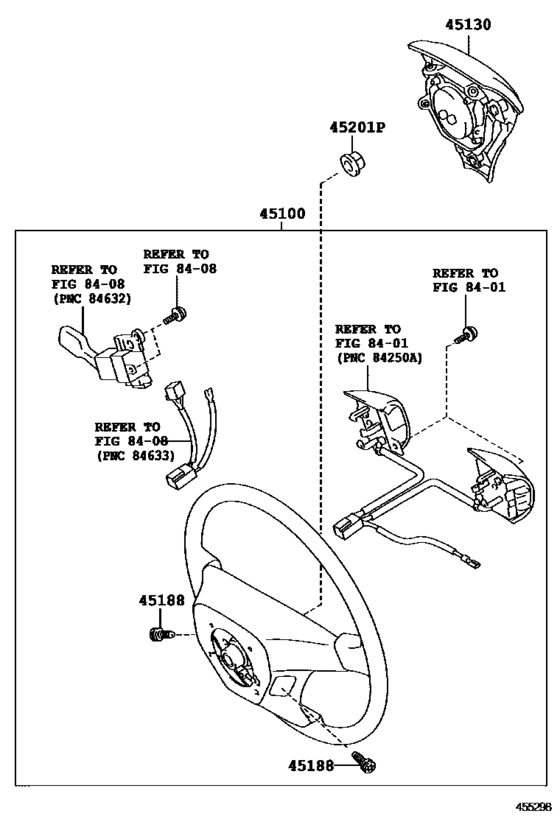

Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO) 7

#	OEM	Part name
45100	45100-0R031-B0	Wheel Assy, Steering
45100	45100-0R040-B0	Wheel Assy, Steering
45100	45100-0R070-B0	Wheel Assy, Steering
45130	45130-0R020-B0	Button Assy, Horn
45130	45130-0R022-B0	Button Assy, Horn
45188	45188-07010	Screw, Steering Wheel Pad Attaching
45201	90080-17234	Nut, Steering Wheel Set

OEM	Part name	Category
45100-0R031-B0	Wheel Assy, Steering	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
45100-0R040-B0	Wheel Assy, Steering	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
45100-0R070-B0	Wheel Assy, Steering	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
45130-0R020-B0	Button Assy, Horn	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
45130-0R022-B0	Button Assy, Horn	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
45188-07010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)
90080-17234	Nut, Steering Wheel Set	Steering Wheel ([11.2008 - ] 3-SPOKE,W(AUDIO SWITCH) (0811- )NAP..LIMD,SPO)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 192
Collected: 2026-08-02
