GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

4,179 items

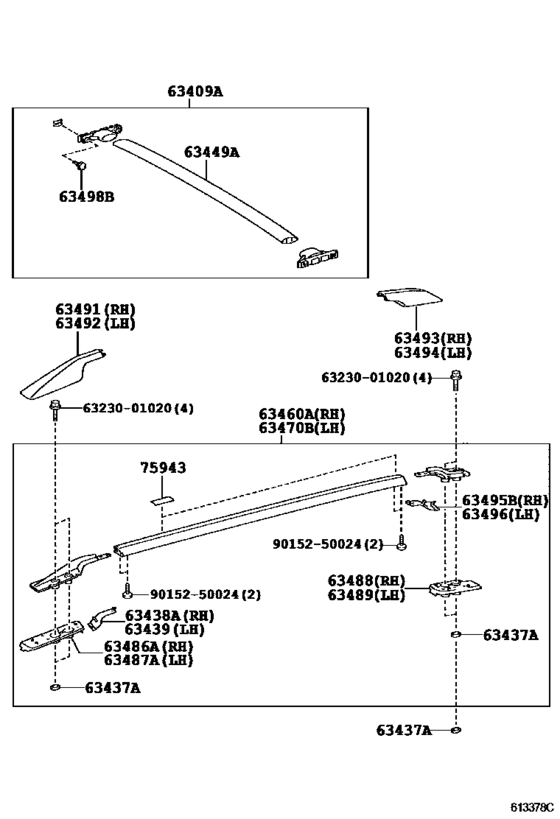

Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP) 22

#	OEM	Part name
63409	63409-0R010	Support Sub-Assy, Roof Rack, Center
63409	63409-0R011	Support Sub-Assy, Roof Rack, Center
63437	63437-0R010	Seal, Roof Carrier, No.1
63438	63438-0R010-C0	Cover, Roof Rack End, No.1
63439	63439-0R010-C0	Cover, Roof Rack End, No.2
63449	63449-0R010	Bar, Roof Rack, Front
63460	63460-0R010-C0	Rack Assy, Roof, Rh
63470	63470-0R010-C0	Rack Assy, Roof, Lh
63486	63486-0R010	Cushion, Roof Rack Leg, Front Rh
63487	63487-0R010	Cushion, Roof Rack Leg, Front Lh
63488	63488-0R010	Cushion, Roof Rack Leg, Rear Rh
63489	63489-0R010	Cushion, Roof Rack Leg, Rear Lh
63491	63491-0R010-C0	Cover, Roof Rack Leg, Front Rh
63492	63492-0R010-C0	Cover, Roof Rack Leg, Front Lh
63493	63493-0R010-C0	Cover, Roof Rack Leg, Rear Rh
63494	63494-0R010-C0	Cover, Roof Rack Leg, Rear Lh
63495	63495-0R010-C0	Cover, Roof Rack Leg, Center Rh
63496	63496-0R010-C0	Cover, Roof Rack Leg, Center Lh
63498	63498-0E020	Cap, Roof Carrier
75943	75943-0R010	Stripe, Roof
6323001020	63230-01020	Bolt Assy, Removable Roof
9015250024	90152-50024	New Genuine Part

OEM	Part name	Category
63230-01020	Bolt Assy, Removable Roof	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63409-0R010	Support Sub-Assy, Roof Rack, Center	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63409-0R011	Support Sub-Assy, Roof Rack, Center	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63437-0R010	Seal, Roof Carrier, No.1	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63438-0R010-C0	Cover, Roof Rack End, No.1	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63439-0R010-C0	Cover, Roof Rack End, No.2	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63449-0R010	Bar, Roof Rack, Front	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63460-0R010-C0	Rack Assy, Roof, Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63470-0R010-C0	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63486-0R010	Cushion, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63487-0R010	Cushion, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63488-0R010	Cushion, Roof Rack Leg, Rear Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63489-0R010	Cushion, Roof Rack Leg, Rear Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63491-0R010-C0	Cover, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63492-0R010-C0	Cover, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63493-0R010-C0	Cover, Roof Rack Leg, Rear Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63494-0R010-C0	Cover, Roof Rack Leg, Rear Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63495-0R010-C0	Cover, Roof Rack Leg, Center Rh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63496-0R010-C0	Cover, Roof Rack Leg, Center Lh	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
63498-0E020	Cap, Roof Carrier	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
75943-0R010	Stripe, Roof	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
90152-50024	New Genuine Part	Roof Panel & Back Panel ([11.2008 - ] ROOF RAIL (0811- )NAP)
