Search › Model › GSA38

GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

4,179 items

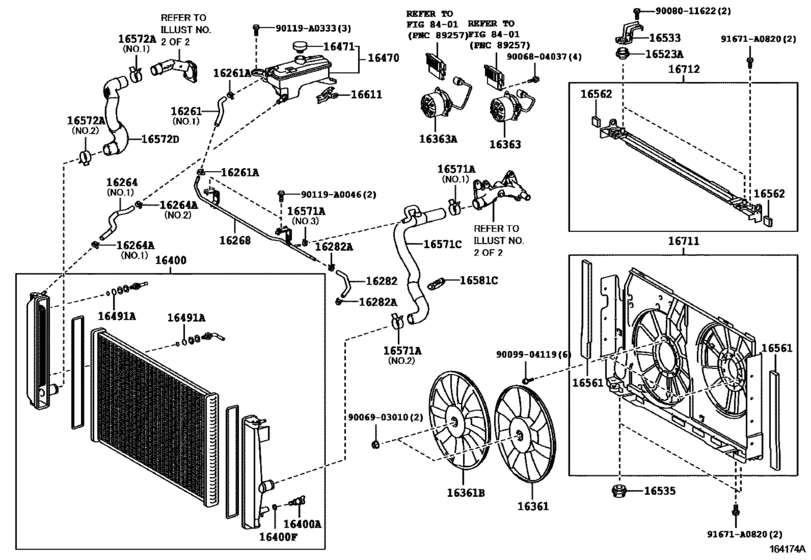

Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP) 50

#	OEM	Part name
16261	16261-28070	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16264	16264-0P031	Hose, Water By-Pass, No.2
16264	16264-28090	Hose, Water By-Pass, No.2
16264	96134-51700	Clip Or Clamp(For Ventilation Hose)
16268	16268-31011	Pipe, Water By-Pass, No.1
16282	16282-28120	Hose, Water By-Pass, No.5
16361	16361-0P130	Fan - NO.2
16361	16361-0V010	Fan
16361	16361-0P140	Fan, No.2
16361	16361-0V020	Fan, No.2
16363	16363-0P120	Motor, Cooling Fan
16363	16363-31130	Motor, Cooling Fan
16363	16363-0P140	Motor, Cooling Fan, No.2
16363	16363-31120	Motor, Cooling Fan
16400	16400-0P230	Radiator Assy
16400	16400-0P240	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-0V010	Tank Assy, Radiator Reserve
16471	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16491	16492-50240	Packing, Radiator
16523	16523-28030	Cushion, Radiator Support
16533	16533-28030	Support, Radiator, Upper
16533	16533-31010	Support, Radiator, Upper
16535	16535-0A090	Support, Radiator, Lower
16561	16561-0V030	Seal, Radiator To Support, No.1
16562	16561-0P050	Seal, Radiator To Support, No.1 - RADIATOR TO SUPPORT, NO.2
16562	16561-0V020	Seal, Radiator To Support, No.1
16571	90466-A0020	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-A0024	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16571	96136-54301	Clip, Radiator Hose, No.1
16571	96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	16571-0P170	Hose, Radiator, No.1
16572	16572-0P190	Hose, Radiator, No.2
16581	16581-26040	Clamp, Hose(For Water Hose)
16611	16611-0V010	Bracket, Radiator Reserve Tank
16711	16711-0P130	Shroud, Fan
16711	16711-0P140	Shroud, Fan
16712	16712-0P010	Shroud, Fan, No.2
16712	16712-0V010	Shroud, Fan, No.2
90119	90119-A0046	New Genuine Part
90119	90119-A0333	New Genuine Part
91671	91671-A0820	New Genuine Part
9006804037	90068-04037	BOLT
9006903010	90069-03010	NUT
9008011622	90080-11622	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD

OEM	Part name	Category
16261-28070	Hose, Water By-Pass	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16264-0P031	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16264-28090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16268-31011	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16282-28120	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16361-0P130	Fan - NO.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16361-0P140	Fan, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16361-0V010	Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16361-0V020	Fan, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16363-0P120	Motor, Cooling Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16363-0P140	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16363-31120	Motor, Cooling Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16363-31130	Motor, Cooling Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16400-0P230	Radiator Assy	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16400-0P240	Radiator Assy	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16470-0V010	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16492-50240	Packing, Radiator	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16523-28030	Cushion, Radiator Support	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16533-28030	Support, Radiator, Upper	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16533-31010	Support, Radiator, Upper	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16535-0A090	Support, Radiator, Lower	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16561-0P050	Seal, Radiator To Support, No.1 - RADIATOR TO SUPPORT, NO.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16561-0V020	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16561-0V030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16571-0P170	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16572-0P190	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16581-26040	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16611-0V010	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16711-0P130	Shroud, Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16711-0P140	Shroud, Fan	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16712-0P010	Shroud, Fan, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
16712-0V010	Shroud, Fan, No.2	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90068-04037	BOLT	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90069-03010	NUT	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90080-11622	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90119-A0046	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90119-A0333	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90466-A0020	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90466-A0024	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
91671-A0820	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
96134-51700	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
96136-54301	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2008 - ] TOWING PACKAGE (0811- )2GRFE..NAP)
