GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories
GSA38 ×

← Back to categories

4,179 items

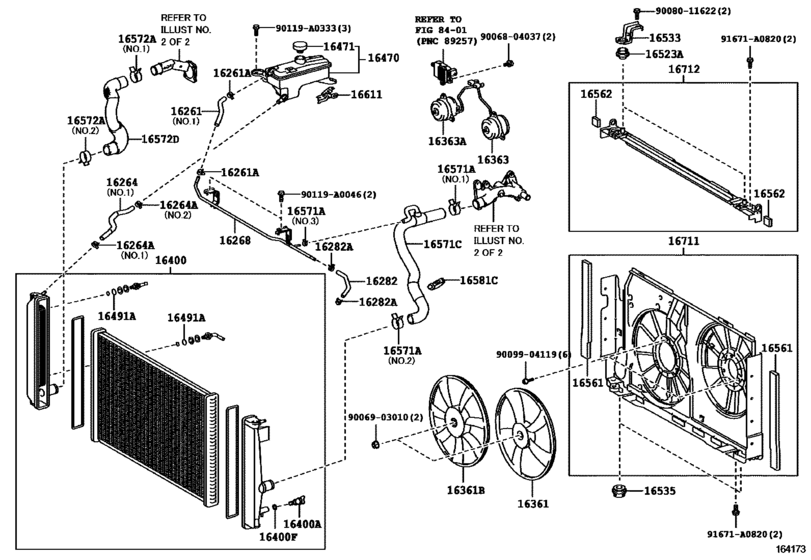

Radiator & Water Outlet ([11.2008 - ] (0811- )2GRFE..NAP) 85
#OEMPart name
16261 16261-28070 Hose, Water By-Pass
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 16261-0P030 Hose, Water By-Pass
16261 16261-31050 Hose, Water By-Pass
16261 90466-A0015 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96136-42701 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-0P031 Hose, Water By-Pass, No.2
16264 16264-28090 Hose, Water By-Pass, No.2
16264 96134-51700 Clip Or Clamp(For Ventilation Hose)
16264 96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 16267-0P020 Hose, Water By-Pass, No.3
16267 16267-31040 Hose, Water By-Pass, No.3
16267 90466-A0017 Clip, No.2(For Oil Cooler Hose)
16268 16268-31011 Pipe, Water By-Pass, No.1
16282 16282-28120 Hose, Water By-Pass, No.5
16321 16321-0P010 Inlet, Water
16321 16321-31011 Inlet, Water
16321 16321-31030 Inlet, Water
16322 16322-0P010 Pipe, Water Inlet
16322 16322-31010 Pipe, Water Inlet
16323 16323-0P030 Housing, Water Inlet
16323 16323-31040 Housing, Water Inlet
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16326 16325-0P020 Gasket, Water Inlet Housing, No.2
16326 16325-31010 Gasket, Water Inlet Housing, No.1
16331 16331-31140 Outlet, Water
16331 90916-03140 Thermostat
16331 90916-A3002 Thermostat
16341 16341-31010 Gasket, Water Outlet
16341 16341-AD010 Gasket, Water Outlet
16361 16361-0P130 Fan - NO.2
16361 16361-0V010 Fan
16361 16361-0P140 Fan, No.2
16361 16361-0V020 Fan, No.2
16363 16363-0P120 Motor, Cooling Fan
16363 16363-31130 Motor, Cooling Fan
16363 16363-0P140 Motor, Cooling Fan, No.2
16363 16363-31120 Motor, Cooling Fan
16400 16400-0P230 Radiator Assy
16400 16400-0P240 Radiator Assy
16400 16417-21280 Cock Sub-Assy, Radiator Drain
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 16470-0V010 Tank Assy, Radiator Reserve
16471 16475-51010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16491 16492-50240 Packing, Radiator
16523 16523-28030 Cushion, Radiator Support
16533 16533-28030 Support, Radiator, Upper
16533 16533-31010 Support, Radiator, Upper
16535 16535-0A090 Support, Radiator, Lower
16561 16561-0V030 Seal, Radiator To Support, No.1
16562 16561-0P050 Seal, Radiator To Support, No.1 - RADIATOR TO SUPPORT, NO.2
16562 16561-0V020 Seal, Radiator To Support, No.1
16571 90466-A0020 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-A0024 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 96136-54301 Clip, Radiator Hose, No.1
16571 96136-54801 Clamp Or Clip, Hose(For Radiator Inlet)
16571 16571-0P170 Hose, Radiator, No.1
16572 16572-0P190 Hose, Radiator, No.2
16581 16581-26040 Clamp, Hose(For Water Hose)
16611 16611-0V010 Bracket, Radiator Reserve Tank
16711 16711-0P130 Shroud, Fan
16711 16711-0P140 Shroud, Fan
16712 16712-0P010 Shroud, Fan, No.2
16712 16712-0V010 Shroud, Fan, No.2
90105 90105-A0079 New Genuine Part
90105 90105-A0119 New Genuine Part
90119 90119-A0046 New Genuine Part
90119 90119-A0333 New Genuine Part
90119 90119-A0182 New Genuine Part
90178 90178-A0023 Nut, Wire Adjusting, No.2
91671 91671-A0820 New Genuine Part
9006804037 90068-04037 BOLT
9006903010 90069-03010 NUT
9008011622 90080-11622 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9091009127 90910-09127 COCK ASSY DRAIN
9155180620 91551-80620 Bolt
9155180660 91551-80660 BOLT FLANGE
9167180612 91671-80612 Bolt
9212280616 92122-80616 Bolt, Stud(For Head To Cylinder Head Cover)
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
9676124019 96761-24019 Ring, O(For Water By-Pass Pipe)
9676124021 96761-24021 Ring, O(For Water By-Pass Joint Front)
