GSA38

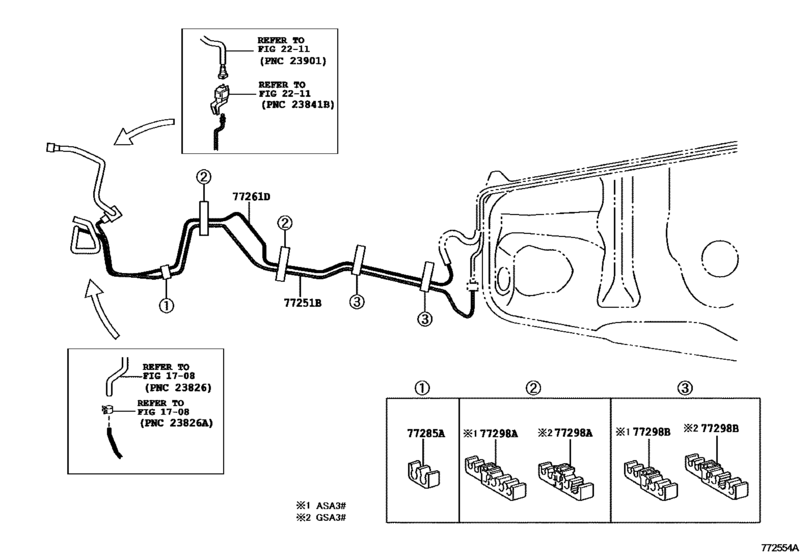

Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) 5
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-0R010 | Tube, Fuel Main |
| 77261 | 77261-0R010 | Tube, Fuel Tank To Canister |
| 77285 | 77285-0R020 | Support, Fuel Return And Main Tube |
| 77298 | 77298-0R050 | Clamp, Fuel Tube, No.4 |
| 77298 | 77298-0R060 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77251-0R010 | Tube, Fuel Main | Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) |
| 77261-0R010 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) |
| 77285-0R020 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) |
| 77298-0R050 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) |
| 77298-0R060 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NAP) |
