GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories
GSA38 ×

← Back to categories

4,179 items

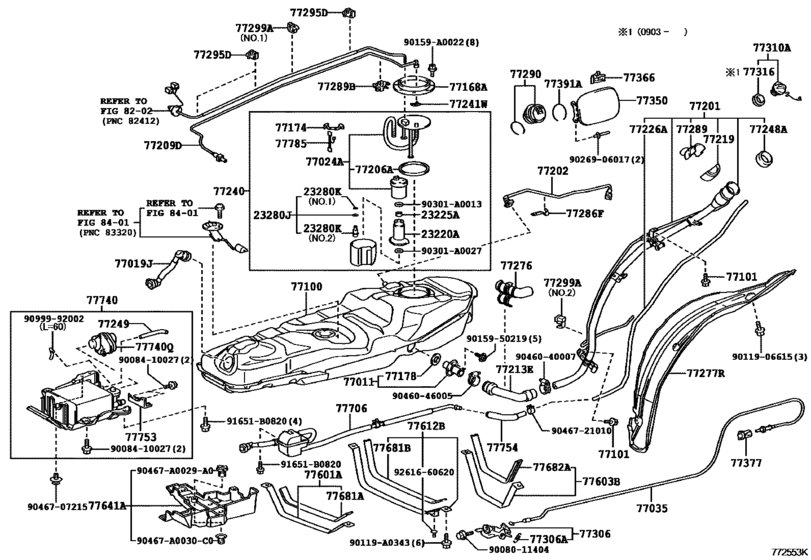

Fuel Tank & Tube ([11.2008 - ] FUEL TANK (0811- )NAP) 86
#OEMPart name
23220 23220-0P100 Pump Assy, Fuel W/filter
23220 23220-0P101 Pump Assy, Fuel W/filter
23220 77785-0R010 Harness, Fuel Pump
23225 23225-21020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77011 77011-42040 Pipe Sub-Assy, Fuel Tank Filler, Lower
77019 77019-42070 Tube Sub-Assy, Fuel Tank To Canister
77024 77024-0R010 Plate Sub-Assy, Fuel Suction
77035 77035-0R010 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-0R010 Tank Assy, Fuel
77100 77001-0R030 Tank Assy, Fuel
77100 77001-0R011 Tank Assy, Fuel
77101 90105-A0206 Plug(For Fuel Sub-Tank)
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77174 77174-0R010 Support, Fuel Suction, No.1
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-0R010 Pipe Sub-Assy, Fuel Tank Inlet
77202 77015-0R010 Tube Sub-Assy, Breather
77206 77169-52010 Gasket, Fuel Suction Tube Set
77209 77209-0R010 Tube Sub-Assy, Fuel Tank Main
77209 77209-0R011 Tube Sub-Assy, Fuel Tank Main
77213 77213-0R010 Hose, Fuel Tank To Filler Pipe
77219 77219-06040 Cover, Fuel Tank Filler Pipe
77226 77226-0R010 Tube, Fuel Tank Breather, No.6
77240 77020-0R020 Tube Assy, Fuel Suction
77241 77241-06020 Clip, Tube Joint
77248 77248-06020 Holder, Fuel Tank Filler Pipe Cover
77249 77249-42040 Hose, Fuel Emission
77276 77276-42030 Protector, Fuel Hose
77276 77276-42031 Protector, Fuel Hose
77277 77277-0R010 Protector, Fuel Tank Filler Pipe
77277 77277-0R011 Protector, Fuel Tank Filler Pipe
77286 77286-0R010 Clamp, Fuel Tube, No.2
77289 77289-06050 Cover, Fuel Tank Filler Pipe - FUEL TANK PIPE SETTING
77289 77289-0R030 Clamp, Fuel Tube, No.3
77290 77290-42020 Shield Assy, Fuel Tank Filler Pipe
77295 77295-0R020 Grommet, Fuel Tube
77299 77299-0E010 Clamp, Fuel Tube, No.5
77299 77299-0R030 Clamp, Fuel Tube, No.5
77306 77306-0R020 Lever Sub-Assy, Fuel Lid Lock Open
77306 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
77310 77300-06040 Cap Assy, Fuel Tank
77316 77316-06070 Gasket, Fuel Tank Cap
77350 77350-0R010 Lid Assy, Fuel Filler Opening
77366 77360-0R010 Spring Assy, Charging Port Opening Lid
77377 77377-02010 Retainer, Fuel Filler Opening Lid Lock
77391 77391-0R010 Ring, Fuel Inlet Box
77601 77601-42060 Band Sub-Assy, Fuel Tank, No.1
77601 77601-42091 Band Sub-Assy, Fuel Tank, No.1
77603 77603-42010 Band Sub-Assy, Fuel Tank, No.2 Rh
77603 77603-42031 Band Sub-Assy, Fuel Tank, No.2
77612 77602-42010 Band, Fuel Tank, No.2
77612 77602-42031 Band Sub-Assy, Fuel Tank, No.2
77641 77641-0R020 Protector, Fuel Tank, No.1
77681 77681-42010 Seat, Fuel Tank Band, Rh
77681 77681-21010 Seat, Fuel Tank Band, Rh
77706 77706-0R011 Filter Sub-Assy, Charcoal Canister
77740 77740-0R010 Canister Assy, Charcoal
77740 90910-AF002 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF005 Leak Detection Pump Sub-Assy, Charcoal Canister
77753 77753-42020 Bracket, Charcoal Canister, No.3
77754 77754-0R010 Hose, Charcoal Canister Outlet, No.1
77785 77785-02030 Harness, Fuel Pump
77785 77785-02031 Harness, Fuel Pump
90119 90119-A0343 New Genuine Part
90159 90159-A0022 SCREW WWASHER
90301 90301-A0013 Ring, O(For Fuel Pressure Regulator)
90301 90301-A0027 New Genuine Part
90467 90467-A0029-A0 Clip, Front Floor Cover, No.1
90467 90467-A0030-C0 Clip, Front Floor Cover, No.2
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9008011404 90080-11404 New Genuine Part
9008410027 90084-10027 New Genuine Part
9011906615 90119-06615 BOLT, WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9026906017 90269-06017 RIVET
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046707215 90467-07215 Clip
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9099992002 90999-92002 Air Hose (300 mm)
9261660620 92616-60620 New Genuine Part
