Search › Model › GSA38

GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

← Back to categories

4,179 items

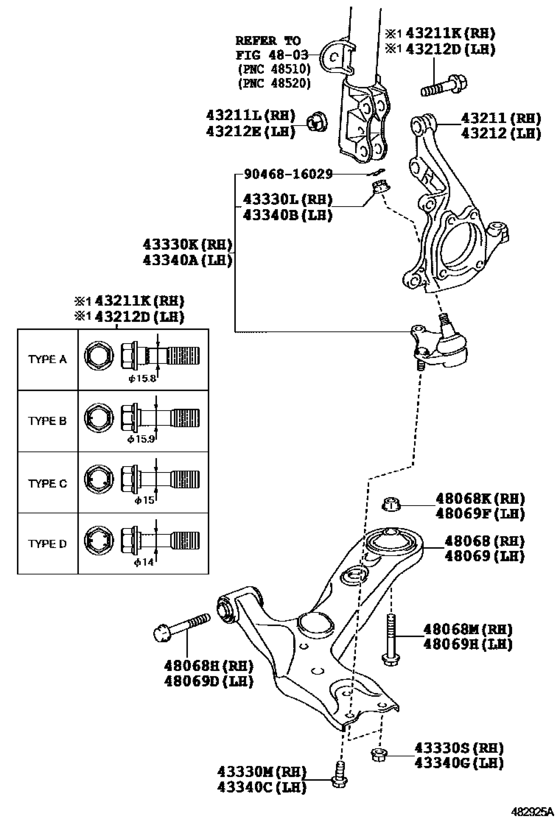

Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP) 16

#	OEM	Part name
43211	43211-0R020	Knuckle, Steering, Rh
43211	90080-10335	Bolt (For Steering Knuckle Rh)
43211	90105-17009	Bolt (For Steering Knuckle Rh)
43211	90105-17010	Bolt (For Steering Knuckle Rh)
43211	90105-17011	Bolt (For Steering Knuckle Rh)
43211	90178-A0027	Nut (For Rear Axle Carrier Rh)
43212	43212-0R020	Knuckle, Steering, Lh
43330	43330-09720	Joint Assy, Lower Ball, Front
43330	90171-14011	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90105-A0227	Bolt (For Front Lower Ball Joint Rh)
43330	90178-A0094	Nut (For Front Lower Ball Joint Rh)
48068	48068-0R010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90105-A0250	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90178-A0098	Nut(For Front Suspension Lower Arm No.2 Rh)
48069	48069-0R010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9046816029	90468-16029	CLIP

OEM	Part name	Category
43211-0R020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
43212-0R020	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
43330-09720	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
48068-0R010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
48069-0R010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90080-10335	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90105-17009	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90105-17010	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90105-17011	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90105-A0227	Bolt (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90105-A0250	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90171-14011	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90178-A0027	Nut (For Rear Axle Carrier Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90178-A0094	Nut (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90178-A0098	Nut(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)
90468-16029	CLIP	Front Axle Arm & Steering Knuckle ([11.2008 - ] (0811- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 192
Collected: 2026-08-02
