Search › Model › GSA38

GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

4,179 items

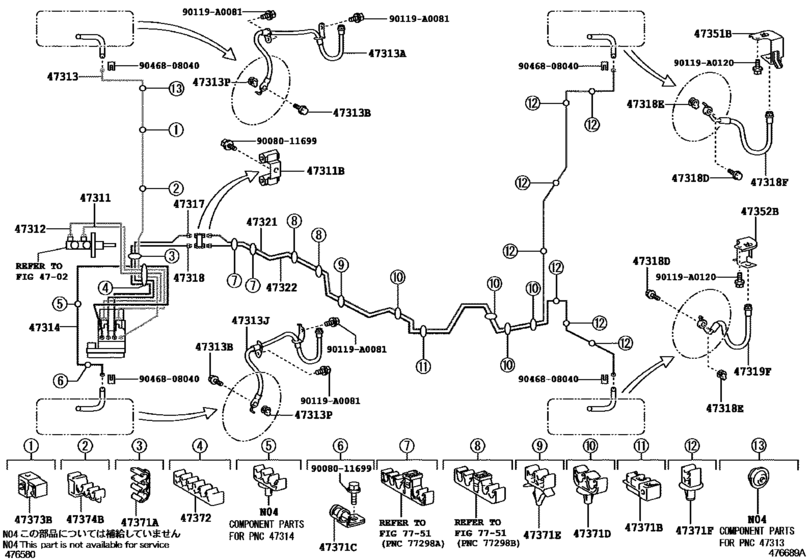

Brake Tube & Clamp ([11.2008 - ] (0811- )NAP) 40

#	OEM	Part name
44510	44050-0R070	Actuator Assy, Brake
44510	44050-0R071	Actuator Assy, Brake
44510	44050-0R072	Actuator Assy, Brake
44510	44050-0R074	Actuator Assy, Brake
44510	44050-0R073	Actuator Assy, Brake
44546	44546-12110	Cushion, Brake Actuator Bolt
44590	44590-0R010	Bracket Assy, Brake Actuator
47311	47311-0R010	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-0R010	Tube, Front Brake, No.2
47313	47313-0R010	Tube, Front Brake, No.3
47313	90947-A2042	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-A2043	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-0R010	Tube, Front Brake, No.4
47317	47317-0R010	Tube, Front Brake, No.7
47318	47318-0R010	Tube, Front Brake, No.8
47318	90947-A2044	Hose, Flexible(For Rear Rh)
47319	90947-A2045	Hose, Flexible(For Rear Lh)
47321	47321-0R010	Tube, Rear Brake, No.1
47322	47322-0R010	Tube, Rear Brake, No.2
47351	47351-0R010	Bracket, Flexible Hose, No.1
47352	47352-0R010	Bracket, Flexible Hose, No.2
47371	90464-00868	Clamp, Brake Tube, No.1
47371	77299-32030	Clamp, Brake Tube, No.6
47371	90461-10781	Clamp, Brake Tube, No.6
47371	90469-07020	Clamp, Brake Tube, No.6
47371	90469-07019	Clamp, Brake Tube, No.1
47371	90949-01D29	Clamp(For Clutch Tube)
47372	90464-00890	Clamp, Brake Tube, No.1
47373	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47374	90949-01D05	Clamp, Brake Tube, No.7
90119	90119-A0081	New Genuine Part
90119	90119-A0120	New Genuine Part
90119	90119-A0291	New Genuine Part
4452112050	44521-12050	Collar, Brake Actuator Case, No.1
9008011699	90080-11699	Bolt, W/washer
9017908200	90179-08200	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-0R070	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44050-0R071	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44050-0R072	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44050-0R073	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44050-0R074	Actuator Assy, Brake	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44521-12050	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44546-12110	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
44590-0R010	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47311-0R010	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47312-0R010	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47313-0R010	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47314-0R010	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47317-0R010	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47318-0R010	Tube, Front Brake, No.8	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47321-0R010	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47322-0R010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47351-0R010	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47352-0R010	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
77299-32030	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90080-11699	Bolt, W/washer	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90119-A0081	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90119-A0120	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90119-A0291	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90179-08200	New Genuine Part	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90464-00890	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90468-08040	CLIP	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90469-07019	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90469-07020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90947-A2042	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90947-A2043	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90947-A2044	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90947-A2045	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90949-01D05	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([11.2008 - ] (0811- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 192
Collected: 2026-08-02
