GSA38

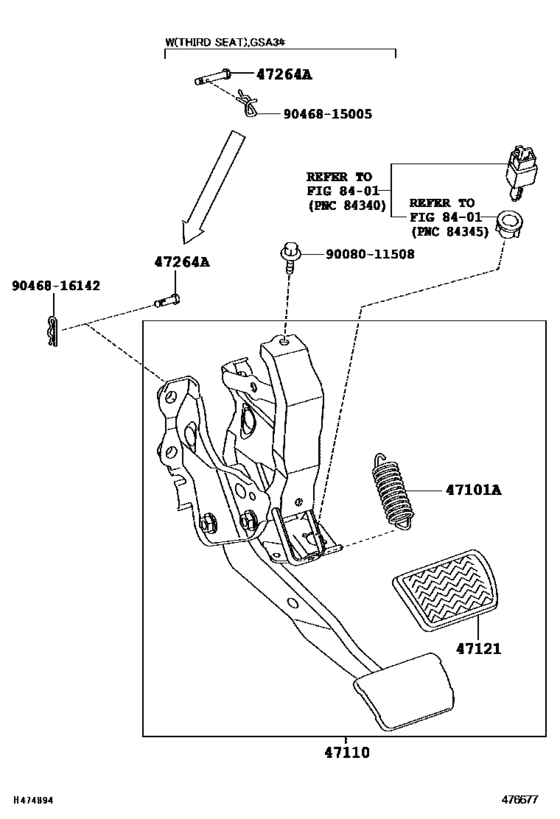

Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) 8
| # | OEM | Part name |
|---|---|---|
| 47101 | 47146-42020 | Spring(For Brake Pedal Return) |
| 47110 | 47110-0R020 | Support Assy, Brake Pedal |
| 47110 | 47110-0R021 | Support Assy, Brake Pedal |
| 47121 | 47121-42010 | Pad, Brake Pedal |
| 47264 | 90249-06180 | Pin(For Push Rod) |
| 9008011508 | 90080-11508 | New Genuine Part |
| 9046815005 | 90468-15005 | CLIP |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-0R020 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 47110-0R021 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 47121-42010 | Pad, Brake Pedal | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 47146-42020 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 90080-11508 | New Genuine Part | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 90249-06180 | Pin(For Push Rod) | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 90468-15005 | CLIP | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([11.2008 - ] (0811- )NAP) |
