GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

← Back to categories

4,179 items

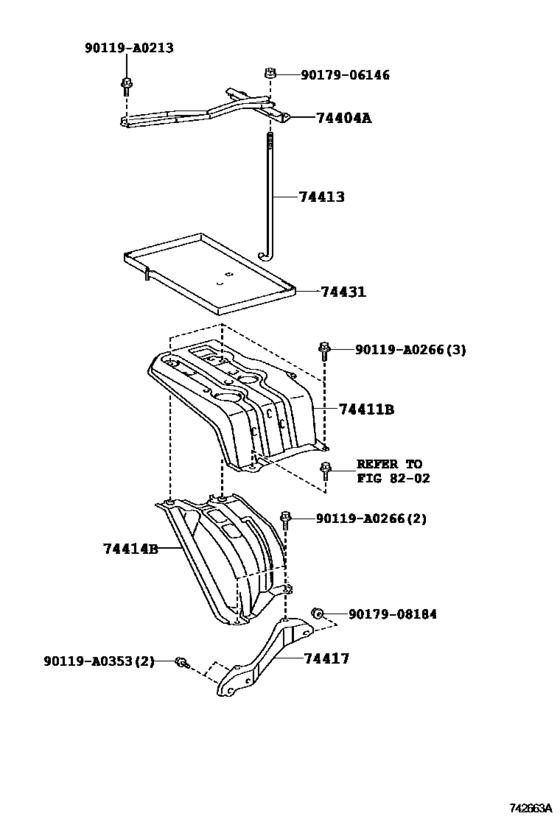

Battery Carrier ([11.2008 - ] (0811- )NAP) 12

#	OEM	Part name
74404	74404-0R011	Clamp Sub-Assy, Battery
74411	74411-0R010	Bracket, Battery, Front
74411	74411-0R030	Bracket, Battery, Front
74413	74451-10060	Bolt, Battery Clamp
74414	74414-0R010	Reinforcement, Battery Bracket
74417	74417-0R010	Bracket, Battery Carrier
74431	74431-0R010	Tray, Battery
90119	90119-A0213	New Genuine Part
90119	90119-A0266	New Genuine Part
90119	90119-A0353	New Genuine Part
9017906146	90179-06146	Nut
9017908184	90179-08184	NUT

OEM	Part name	Category
74404-0R011	Clamp Sub-Assy, Battery	Battery Carrier ([11.2008 - ] (0811- )NAP)
74411-0R010	Bracket, Battery, Front	Battery Carrier ([11.2008 - ] (0811- )NAP)
74411-0R030	Bracket, Battery, Front	Battery Carrier ([11.2008 - ] (0811- )NAP)
74414-0R010	Reinforcement, Battery Bracket	Battery Carrier ([11.2008 - ] (0811- )NAP)
74417-0R010	Bracket, Battery Carrier	Battery Carrier ([11.2008 - ] (0811- )NAP)
74431-0R010	Tray, Battery	Battery Carrier ([11.2008 - ] (0811- )NAP)
74451-10060	Bolt, Battery Clamp	Battery Carrier ([11.2008 - ] (0811- )NAP)
90119-A0213	New Genuine Part	Battery Carrier ([11.2008 - ] (0811- )NAP)
90119-A0266	New Genuine Part	Battery Carrier ([11.2008 - ] (0811- )NAP)
90119-A0353	New Genuine Part	Battery Carrier ([11.2008 - ] (0811- )NAP)
90179-06146	Nut	Battery Carrier ([11.2008 - ] (0811- )NAP)
90179-08184	NUT	Battery Carrier ([11.2008 - ] (0811- )NAP)
