Search › Model › GSA38

GSA38

Toyota RAV4-VANGUARD · 2006 · 4,179 parts · 192 categories

4,179 items

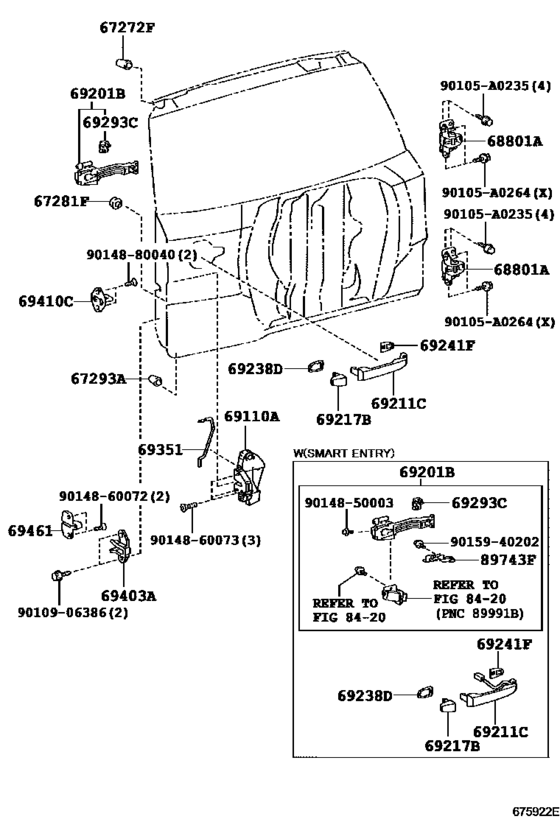

Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP) 44

#	OEM	Part name
67272	90541-09108	Cushion, Back Door Stopper, No.2
67281	67282-0R010	Stopper, Back Door, Lower
67293	67293-42030	Cushion, Back Door Stopper
68801	68801-0R010	Hinge Sub-Assy, Back Door, Upper
69110	69110-0R010	Lock Assy, Back Door W/motor
69110	69110-42131	Lock Assy, Back Door W/motor
69110	69110-0R011	Lock Assy, Back Door W/motor
69201	69201-02120	Frame Sub-Assy, Front Door Outside Handle, Rh
69211	69211-AA020-A0	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-B7	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-C0	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-D6	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-E3	Handle Assy, Front Door, Outside Rh - BACK DOOR OUTSIDE
69211	69211-AA020-E4	Handle Assy, Front Door, Outside Rh - BACK DOOR OUTSIDE
69211	69211-AA020-G2	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-R1	Handle Assy, Front Door, Outside Rh
69211	69211-AA020-B6	Handle Assy, Front Door, Outside Rh
69217	69217-AA010-A1	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-AA010-B4	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-AA010-C0	Cover, Back Door Outside Handle
69217	69217-AA010-D2	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-AA010-E2	Cover, Back Door Outside Handle
69217	69217-AA010-E3	Cover, Back Door Outside Handle
69217	69217-AA010-G2	Cover, Back Door Outside Handle
69217	69217-AA010-J6	Cover, Back Door Outside Handle
69217	69217-AA010-B3	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69238	69238-AA010	Pad, Front Door Outside Handle, Rear
69241	69241-AA020	Pad, Front Door Outside Handle, Front
69293	69293-33010	Snap, Front Door Outside Handle
69351	69378-0R010	Rod, Back Door Lock Control, Upper
69403	69403-0R010	Stopper Sub-Assy, Back Door Side Female, Rh
69403	69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh
69403	69403-0R011	Stopper Sub-Assy, Back Door Side Female, Rh
69410	69410-60010	Plate Assy, Rear Door Lock Striker
69461	69461-0R010	Stopper, Back Door Side Male, Rh
69461	69461-0R011	Stopper, Back Door Side Male, Rh
90105	90105-A0235	New Genuine Part
90105	90105-A0264	New Genuine Part
9010906386	90109-06386	BOLT
9014850003	90148-50003	Screw Hex Lobular
9014860072	90148-60072	SCREW HEXALOBULAR
9014860073	90148-60073	SCREW HEXALOBULAR
9014880040	90148-80040	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER

OEM	Part name	Category
67282-0R010	Stopper, Back Door, Lower	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
67293-42030	Cushion, Back Door Stopper	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
68801-0R010	Hinge Sub-Assy, Back Door, Upper	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69110-0R010	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69110-0R011	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69110-42131	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69201-02120	Frame Sub-Assy, Front Door Outside Handle, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-A0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-B6	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-B7	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-C0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-D6	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-E3	Handle Assy, Front Door, Outside Rh - BACK DOOR OUTSIDE	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-E4	Handle Assy, Front Door, Outside Rh - BACK DOOR OUTSIDE	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-G2	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69211-AA020-R1	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-A1	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-B3	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-B4	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-C0	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-D2	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-E2	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-E3	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-G2	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69217-AA010-J6	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69238-AA010	Pad, Front Door Outside Handle, Rear	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69241-AA020	Pad, Front Door Outside Handle, Front	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69293-33010	Snap, Front Door Outside Handle	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69378-0R010	Rod, Back Door Lock Control, Upper	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69403-0R010	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69403-0R011	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69410-60010	Plate Assy, Rear Door Lock Striker	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69461-0R010	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
69461-0R011	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90105-A0235	New Genuine Part	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90105-A0264	New Genuine Part	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90109-06386	BOLT	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90148-50003	Screw Hex Lobular	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90148-60072	SCREW HEXALOBULAR	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90148-60073	SCREW HEXALOBULAR	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90148-80040	Screw Hex Lobular	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90159-40202	SCREW WWASHER	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)
90541-09108	Cushion, Back Door Stopper, No.2	Back Door Lock & Hinge ([11.2008 - ] (0811- )NAP)

Source: Public OEM parts-catalog data
Variants: 2 / 9
Category: 192
Collected: 2026-08-02
