Search › Model › GS171

GS171

Toyota CROWN-MAJESTA · 2000 · 5,749 parts · 252 categories

← Back to categories

5,749 items

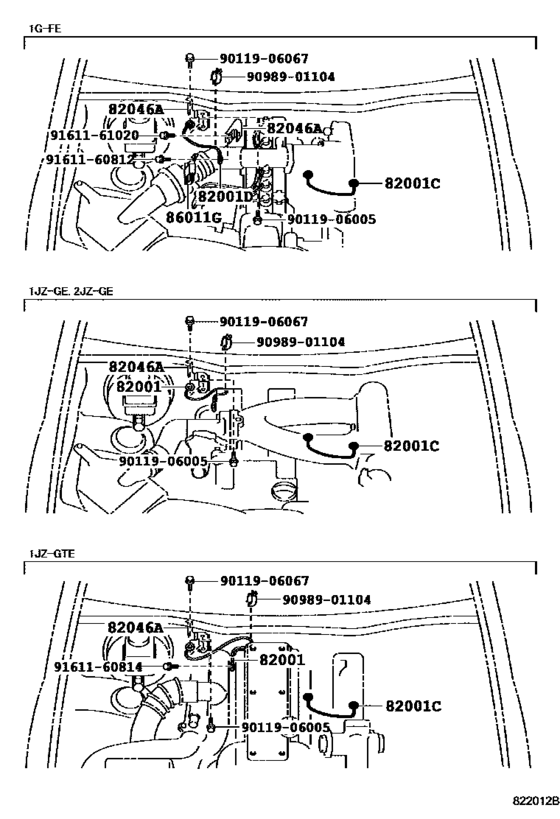

Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT) 13

#	OEM	Part name
82001	90980-07356	Cable, Bond, No.1
82001	90980-07327	Cable, Bond, No.1
82046	82046-30070	Wire Sub-Assy, Body Ground, No.1
82046	82046-53040	Wire Sub-Assy, Body Ground, No.1
86011	90980-04132	Condenser, Radio Setting
9011906005	90119-06005	New Genuine Part
9011906067	90119-06067	BOLT
9098901104	90989-01104	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160814	91611-60814	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
82046-30070	Wire Sub-Assy, Body Ground, No.1	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
82046-53040	Wire Sub-Assy, Body Ground, No.1	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90119-06005	New Genuine Part	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90119-06067	BOLT	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90980-04132	Condenser, Radio Setting	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90980-07327	Cable, Bond, No.1	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90980-07356	Cable, Bond, No.1	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
90989-01104	New Genuine Part	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
91611-60814	Bolt	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
91611-61020	Bolt(For Transaxle & Engine Setting)	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
91611-B0812	Bolt	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Wiring & Clamp ([08.2001 - ] ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ (9909-0108)GS171,JZS171,173,179 ; (0108- )GS1 71,JZS171,173,179..HTWC,TWC,TWT)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 252
Collected: 2026-08-02
