GS171

Toyota CROWN-MAJESTA · 2000 · 5,749 parts · 252 categories
GS171 ×

← Back to categories

5,749 items

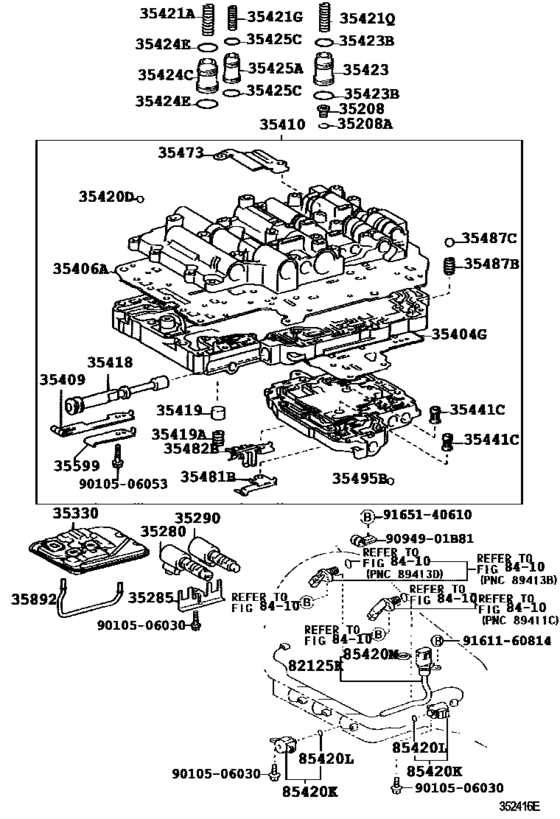

Valve Body & Oil Strainer (Atm) ([09.1999 - 08.2001] A42DE (9909-0108)GS171) 122
#OEMPart name
35208 35208-28010 Spring Sub-Assy, B-2 Accumulator
35208 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35211 35211-22010 Valve, Lock Up Signal
35212 35212-30050 Valve, Lock Up Relay
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35213 35213-50010 Plunger, Lock Up Relay Valve
35214 35214-50010 Valve, Lock Up Control
35214 90501-07111 Spring, Compression (For Lock Up Control Valve)
35215 35215-22020 Sleeve, Lock Up Relay Valve, No.1
35218 90282-03016 Key, Straight (For Lock Up Relay Valve Plug)
35219 35219-50010 Plunger, Lock Up Control Valve
35224 35224-30010 Valve, Reverse Control
35224 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35224 90339-05020 Plug (For Reverse Control Valve)
35224 90501-06056 Spring, Compression (For Reverse Control Valve)
35246 35246-30010 Valve, Check, No.1
35247 35247-30010 Valve, Check, No.2
35275 35275-30010 Valve, Solenoid Modulator
35275 90501-12143 Spring, Compression(For Low-High Shift Valve)
35275 90339-04030 Plug (For Solenoid Modulator Valve)
35280 35280-22010 Solenoid Assy, Lock Up Control
35285 35285-22010 Plate, Solenoid Lock
35290 35290-22010 Solenoid Assy, Line Pressure Control
35330 35330-53010 Strainer Assy, Valve Body Oil
35404 35404-22010 Plate Sub-Assy, Valve Body, No.2
35406 35406-22030 Plate Sub-Assy, Valve Body
35409 35409-22030 Spring Sub-Assy, Manual Detent
35410 35410-22730 Body Assy, Transmission Valve
35415 35415-22030 Valve, Primary Regulator
35415 90501-15028 Spring, Compression (For Primary Regulator Valve)
35415 90560-08099 Washer (For Primary Regulator Valve)
35416 35416-22030 Plunger, Primary Regulator Valve, No.1
35417 35417-22050 Sleeve, Primary Regulator Valve
35418 35418-24010 Valve, Manual
35419 35419-50010 Valve, Check, No.1
35419 90501-09093 Spring, Compression (For Check Valve)
35420 35496-22030 Ball (For Lower Valve Body)
35420 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35420 90080-36191 Ball, Check Valve
35421 90501-20162 Spring, Compression (For Accumulator Piston No.1)
35421 90501-26092 Spring, Compression (For Accumulator Piston No.2)
35421 90501-23147 Spring, Compression (For Accumulator Piston No.3)
35422 35422-22020 Plunger, Primary Regulator Valve, No.2
35423 35421-26010 Piston, Accumulator, No.1
35423 90301-23010 Ring (For Accumulator Piston No.1)
35423 90301-29011 Ring (For Accumulator Piston No.1)
35424 35421-22030 Piston, Accumulator, No.3
35424 90301-21012 Ring (For Accumulator Piston No.3)
35424 90301-26012 Ring (For Accumulator Piston No.1)
35425 35441-30010 Piston, Accumulator, No.2
35425 90301-18010 Ring (For Accumulator Piston No.2)
35426 35426-22010 Piston, C-0 Accumulator
35426 35232-50010 Ring, C-1 Accumulator Seal
35426 90905-01045 Spring, Compression (For C-0 Accumulator Piston)
35426 35493-22040 Seat, C-0 Accumulator Piston Plug
35426 90339-24002 Plug, C-0 Accumulator Piston
35427 35427-22020 Piston, B-0 Accumulator
35427 90501-20156 Spring, Compression (For B-0 Accumulator Piston)
35441 35441-50030 Strainer, Solenoid Oil
35445 35445-50010 Valve, Low Modulator
35445 90501-10140 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-07123 Spring, Compression (For Low Coast Modulator Valve)
35449 35447-22020 Valve, Sequence
35449 90501-10219 Spring, Compression (For Sequence Valve)
35449 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35456 35456-12020 Valve, 2-3 Shift
35456 90501-08135 Spring, Compression (For Shift Valve Plug Seat)
35456 90339-05019 Plug
35456 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35464 35464-12040 Valve, 1-2 Shift
35468 35468-24010 Valve, Secondary Regulator
35468 90501-12170 Spring, Compression (For Secondary Regulator Valve)
35473 35473-22020 Cover, Transmission Valve Body
35476 35284-50010 Valve, Solenoid Relay
35476 90501-06055 Spring, Compression (For Solenoid Relay Valve)
35481 35481-22020 Clamp, Valve Body Wire Harness
35482 35482-22020 Clamp, Temperature Sensor
35486 35486-50010 Seat, Pressure Relief Valve Spring
35486 90501-11061 Spring, Compression(For Pressure Relife Valve)
35486 90360-08003 Ball (For Lower Valve Body)
35487 35487-30010 Ball, Check, No.4
35487 90504-05006 Spring, Compression (For Check Ball)
35489 35489-30030 Valve, C-1 Orifice Control
35489 90339-05014 Plug, Low-High Signal Valve
35489 90501-08121 Spring, Compression (For C-1 Orifice Control Valve)
35489 90501-08196 Spring, Compression (For C-1 Orifice Control Valve)
35491 35491-22020 Valve, Accumulator Control, No.1
35491 90501-07135 Spring, Compression (For Accumulator Control Valve No.1)
35493 35493-50050 Seat, Throttle Valve Spring
35493 35493-50010 Seat, Primary Regulator Valve Plug
35493 35493-22030 Seat, 2Nd Coast Modulator Valve Plug
35493 35493-30040 Seat(For Low-High Shift Timing Valve Plug)
35495 35495-22020 Ball (For Transfer Upper Valve Body)
35497 35497-12020 Valve, 3-4 Shift
35497 90339-05033 Plug (For 3-4 Shift Valve)
35599 35599-22030 Cover, Manual Detent Spring
35892 35892-22010 Tube, Overdrive Brake
82125 82125-22250 Wire, Transmission
85420 35250-30030 Solenoid Assy, Transmission
85420 85420-22130 Solenoid Assy, Transmission
85420 90301-06004 Ring, O No.3(For Transmission Solenoid)
85420 96721-24018 Ring, O
9094901 90949-01B81 New Genuine Part
9010505001 90105-05001 New Genuine Part
9010505002 90105-05002 New Genuine Part
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505031 90105-05031 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506028 90105-06028 New Genuine Part
9010506030 90105-06030 New Genuine Part
9010506030 91511-80614 BOLT FLANGE
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9011905023 90119-05023 New Genuine Part
9161160814 91611-60814 Bolt
9165140610 91651-40610 RIVET
