Search › Model › GS171
GS171

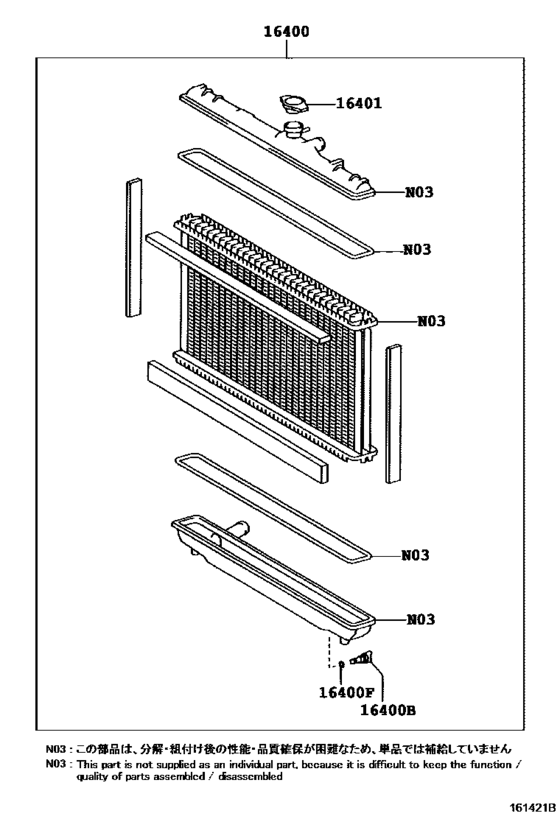

Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) 6
| # | OEM | Part name |
|---|---|---|
| 16400 | 16400-46640 | Radiator Assy |
| 16400 | 23322-54010 | Plug,air(For Oil Cooler Drain Cock) |
| 16400 | 16492-21050 | Ring, O(For Oil Cooler Drain Cock) |
| 16401 | 16401-62100 | Cap Sub-Assy, Radiator |
| 16401 | 16401-31520 | Radiator Cap Sub-Assy (108kPa) |
| 16401 | 16401-36020 | Cap Sub-Assy, Radiator |
| OEM | Part name | Category |
|---|---|---|
| 16400-46640 | Radiator Assy | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
| 16401-31520 | Radiator Cap Sub-Assy (108kPa) | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
| 16401-36020 | Cap Sub-Assy, Radiator | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
| 16401-62100 | Cap Sub-Assy, Radiator | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
| 16492-21050 | Ring, O(For Oil Cooler Drain Cock) | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
| 23322-54010 | Plug,air(For Oil Cooler Drain Cock) | Radiator & Water Outlet ([08.2001 - ] (0108- )1GFE) |
