| 35074-30010 |
Gear Sub-Assy, Rear Planetary Ring |

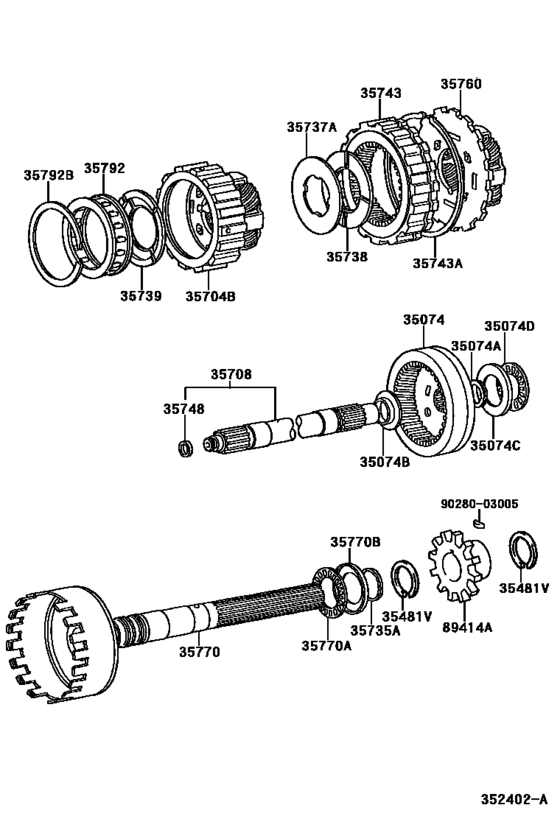

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35704-22030 |
Carrier Sub-Assy, Planetary W/lock Gear |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35708-30031 |
Shaft Sub-Assy, Planetary Intermediate |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35735-22010 |
Ring, Planetary Output Snap |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35737-22010 |
Washer, Planetary Carrier Thrust |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35738-22010 |
Washer, Planetary Carrier Thrust, No.2 |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35739-14010 |
Washer, Planetary Carrier Thrust, No.3 |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35743-22010 |
Gear, Front Planetary Ring |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35748-30010 |
Ring, Intermediate Shaft Sleeve Oil Seal |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35760-22030 |
Gear Assy, Rear Planetary |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35770-22060 |
Shaft Assy, Output |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35789-22020 |
Race, Thrust Bearing (For Rear Planetary Ring Gear Rear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35789-22040 |
Race, Thrust Bearing (For Output Shaft) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35789-22050 |
Race, Thrust Bearing (For Rear Planetary Ring Gear Front) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 35792-30011 |
Clutch, 1 Way, No.2 |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 89414-22020 |
Rotor, Sensor |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90280-03005 |
Key, Oil Pump Drive Shaft |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90374-28014 |
Bearing, Thrust Needle Roller(For Overdrive) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90374-38013 |
Bearing, Thrust (For Output Shaft) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90520-28009 |
Ring Or Spacer (For Mtm Speedometer Drive Gear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90520-29004 |
Ring, Shaft Snap (For Atm Speedmeter Drive Gear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90520-99121 |
Ring, Shaft Snap (For Front Planetary Ring Gear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90521-79148 |
Ring, Hole Snap(For Overdrive Planetary Gear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
| 90522-20037 |
Ring, Set (For Rear Planetary Ring Gear) |
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) |
