Search › Model › GS171

GS171

Toyota CROWN-MAJESTA · 2000 · 5,749 parts · 252 categories

5,749 items

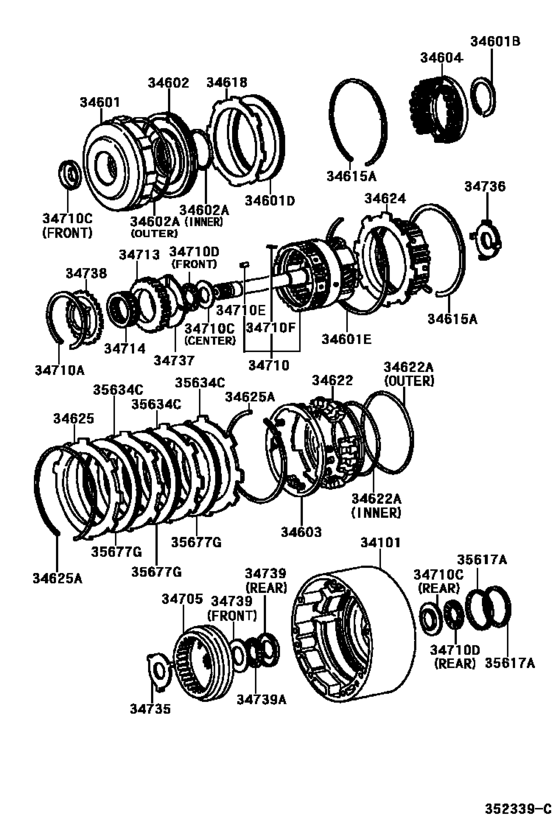

Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171) 41

#	OEM	Part name
34101	34101-22020	Case Sub-Assy, Overdrive
34601	34601-30022	Drum Sub-Assy, Overdrive Direct Clutch
34601	90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)
34601	35677-30140	Disc, Clutch (For Overdrive)
34601	90521-99146	Ring, Hole Snap, No.1 (For Overdrive)
34602	34602-22010	Piston Sub-Assy, Overdrive Direct Clutch
34602	90301-56007	Ring, O (For Underdrive Clutch Piston)
34602	90301-99058	Ring, O (For Overdrive Direct Clutch Piston)
34603	34603-22010	Spring Sub-Assy, Overdrive Brake Return
34604	34604-22010	Spring Sub-Assy, Overdrive Clutch Return
34615	90521-99001	Ring, Hole Snap, No.2 (For Overdrive)
34618	34618-30010	Plate, Clutch (For Overdrive)
34622	34622-22020	Piston, Overdrive Brake
34622	90301-99103	Ring, O (For Overdrive Brake Piston)
34622	90301-99111	Ring, O (For Overdrive Brake Piston)
34624	34624-26010	Hub, Overdrive Brake
34625	34625-22020	Flange, Overdrive Brake, No.1
34625	90521-99004	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
34705	34705-30021	Gear Sub-Assy, Overdrive Planetary Ring
34710	34710-22040	Gear Assy, Overdrive Planetary
34710	90521-99003	Ring, Hole Snap(For Overdrive Planetary Gear)
34710	34739-30031	Race, Thrust Bearing(For Overdrive Planetary Gear)
34710	34739-30041	Race, Thrust Bearing(For Overdrive Planetary Gear)
34710	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
34710	90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710	90374-24001	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710	90334-03001	Plug, Straight(For Overdrive Planetary Gear)
34710	90250-03024	Pin, Straight(For Overdrive Planetary Gear)
34713	34713-30020	Race, 1 Way Clutch Outer (For Overdrive)
34714	35791-30030	Clutch, 1Way, No.1(For Overdrive)
34735	34735-30020	Washer, Overdrive Planetary Gear Thrust, No.1
34736	34736-30010	Washer, Overdrive Planetary Gear Thrust, No.2
34737	34737-30020	Washer, Overdrive Planetary Gear Thrust, No.3
34738	34738-30020	Washer, Overdrive Planetary Gear Thrust, No.4
34739	34739-30020	Race, Thrust Bearing(For Overdrive)
34739	35789-22030	Race, Thrust Bearing(For Overdrive)
34739	90374-28014	Bearing, Thrust Needle Roller(For Overdrive)
35617	35617-43010	Ring, Clutch Drum Oil Seal (For Overdrive)
35634	34634-30010	Plate, Clutch (For Overdrive)
35634	35634-30080	Flange, Overdrive Brake, No.1
35677	35677-43010	Disc, Clutch (For Overdrive)

OEM	Part name	Category
34101-22020	Case Sub-Assy, Overdrive	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34601-30022	Drum Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34602-22010	Piston Sub-Assy, Overdrive Direct Clutch	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34603-22010	Spring Sub-Assy, Overdrive Brake Return	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34604-22010	Spring Sub-Assy, Overdrive Clutch Return	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34618-30010	Plate, Clutch (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34622-22020	Piston, Overdrive Brake	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34624-26010	Hub, Overdrive Brake	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34625-22020	Flange, Overdrive Brake, No.1	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34634-30010	Plate, Clutch (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34705-30021	Gear Sub-Assy, Overdrive Planetary Ring	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34710-22040	Gear Assy, Overdrive Planetary	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34713-30020	Race, 1 Way Clutch Outer (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34735-30020	Washer, Overdrive Planetary Gear Thrust, No.1	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34736-30010	Washer, Overdrive Planetary Gear Thrust, No.2	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34737-30020	Washer, Overdrive Planetary Gear Thrust, No.3	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34738-30020	Washer, Overdrive Planetary Gear Thrust, No.4	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34739-30020	Race, Thrust Bearing(For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34739-30031	Race, Thrust Bearing(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
34739-30041	Race, Thrust Bearing(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35617-43010	Ring, Clutch Drum Oil Seal (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35634-30080	Flange, Overdrive Brake, No.1	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35677-30140	Disc, Clutch (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35677-43010	Disc, Clutch (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35789-22030	Race, Thrust Bearing(For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
35791-30030	Clutch, 1Way, No.1(For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90250-03024	Pin, Straight(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90301-99058	Ring, O (For Overdrive Direct Clutch Piston)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90301-99103	Ring, O (For Overdrive Brake Piston)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90301-99111	Ring, O (For Overdrive Brake Piston)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90334-03001	Plug, Straight(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90374-24001	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90374-28014	Bearing, Thrust Needle Roller(For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90521-99001	Ring, Hole Snap, No.2 (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90521-99003	Ring, Hole Snap(For Overdrive Planetary Gear)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90521-99004	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)
90521-99146	Ring, Hole Snap, No.1 (For Overdrive)	Overdrive Gear (Atm) ([04.2000 - 12.2003] A42DE (0004-0312)GS171)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 252
Collected: 2026-08-02
