GS171

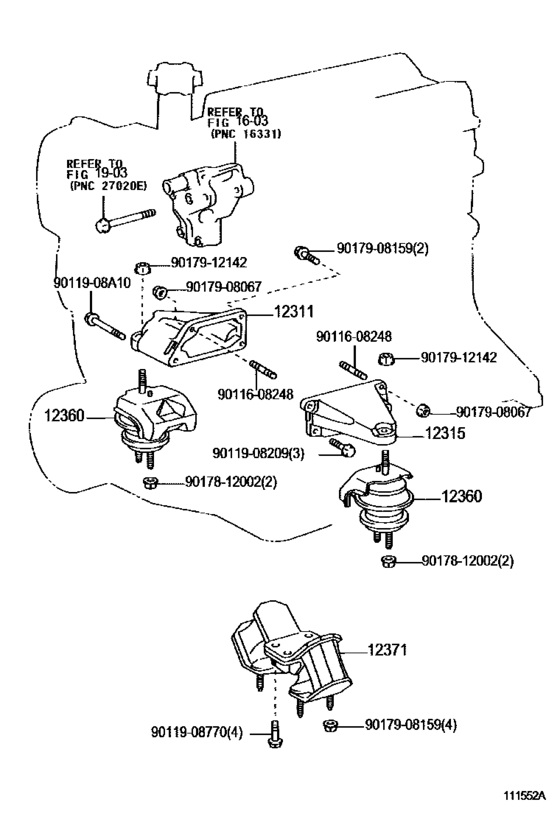

Mounting ([04.2000 - ] (0004- )1GFE) 12
| # | OEM | Part name |
|---|---|---|
| 12311 | 12311-70150 | Bracket, Engine Mounting, Front No.1 Rh |
| 12315 | 12315-70130 | Bracket, Engine Mounting, Front No.1 Lh |
| 12360 | 12360-70040 | Insulator Assy, Engine Mounting, Front |
| 12371 | 12371-46050 | Insulator, Engine Mounting, Rear No.1 |
| 9011908 | 90119-08A10 | New Genuine Part |
| 9011608248 | 90116-08248 | Bolt(For Intake Manifold To Exhaust Manifold) |
| 9011908209 | 90119-08209 | New Genuine Part |
| 9011908770 | 90119-08770 | Bolt, W/washer(For Repair Actuator Set) |
| 9017812002 | 90178-12002 | New Genuine Part |
| 9017908067 | 90179-08067 | New Genuine Part |
| 9017908159 | 90179-08159 | Nut, Cap(For Cylinder Head Cover) |
| 9017912142 | 90179-12142 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 12311-70150 | Bracket, Engine Mounting, Front No.1 Rh | Mounting ([04.2000 - ] (0004- )1GFE) |
| 12315-70130 | Bracket, Engine Mounting, Front No.1 Lh | Mounting ([04.2000 - ] (0004- )1GFE) |
| 12360-70040 | Insulator Assy, Engine Mounting, Front | Mounting ([04.2000 - ] (0004- )1GFE) |
| 12371-46050 | Insulator, Engine Mounting, Rear No.1 | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90116-08248 | Bolt(For Intake Manifold To Exhaust Manifold) | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90119-08209 | New Genuine Part | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90119-08770 | Bolt, W/washer(For Repair Actuator Set) | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90119-08A10 | New Genuine Part | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90178-12002 | New Genuine Part | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90179-08067 | New Genuine Part | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90179-08159 | Nut, Cap(For Cylinder Head Cover) | Mounting ([04.2000 - ] (0004- )1GFE) |
| 90179-12142 | New Genuine Part | Mounting ([04.2000 - ] (0004- )1GFE) |
