Search › Model › GS171
GS171

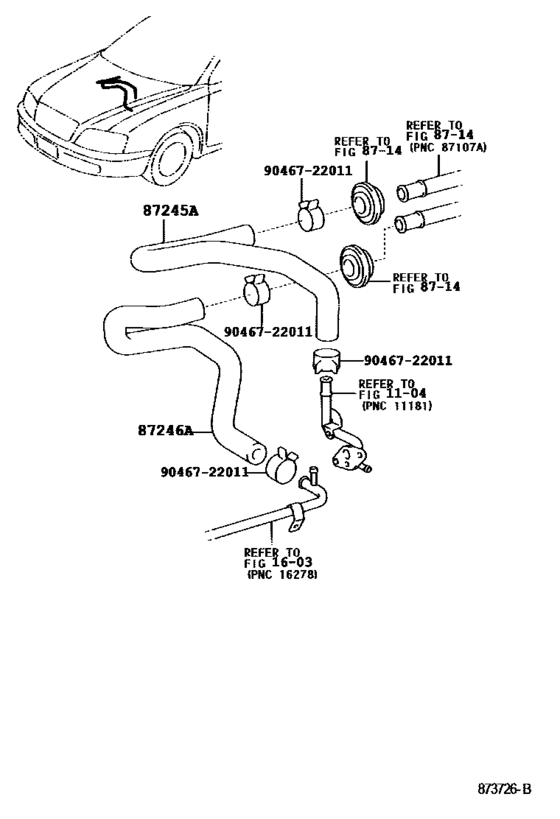

Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) 5
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-3F630 | Hose, Heater Water, Inlet A |
| 87245 | 87245-53030 | Hose, Heater Water, Inlet |
| 87246 | 87245-3F640 | Hose, Heater Water, Outlet A |
| 87246 | 87245-53040 | Hose, Heater Water, Outlet |
| 9046722011 | 90467-22011 | Clip(For Water By-Pass Hose No.1) |
| OEM | Part name | Category |
|---|---|---|
| 87245-3F630 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) |
| 87245-3F640 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) |
| 87245-53030 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) |
| 87245-53040 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) |
| 90467-22011 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([04.2000 - ] (0004- )GS171) |
