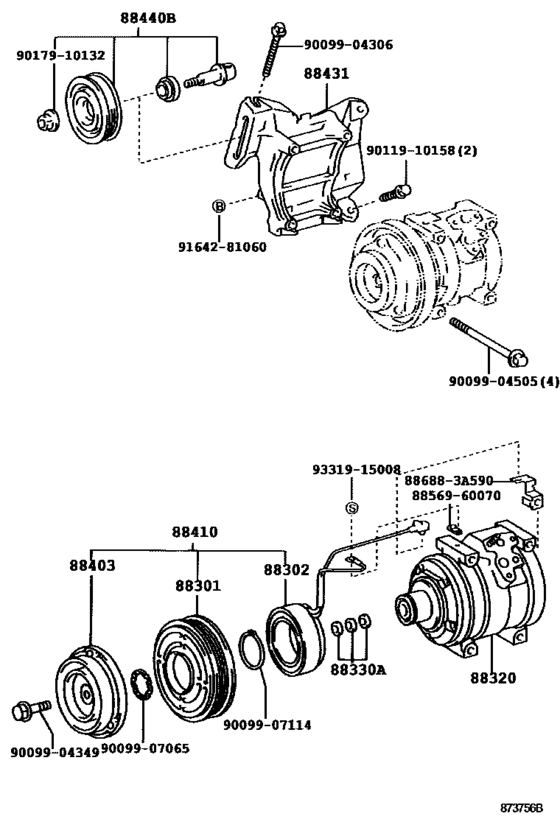

| 88320-3A210 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88403-32010 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88410-2A090 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88411-44010 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88412-2A070 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88431-22350 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88440-20170 |
Pulley Assy, Idle |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88569-60070 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 88688-3A590 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90099-04306 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90099-04505 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90119-10158 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 90179-10132 |
Nut |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 91642-81060 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([04.2000 - 08.2001] (0004-0108)GS171) |
