Search › Model › GS151

GS151

Toyota CROWN-MAJESTA · 1995 · 6,495 parts · 399 categories

6,495 items

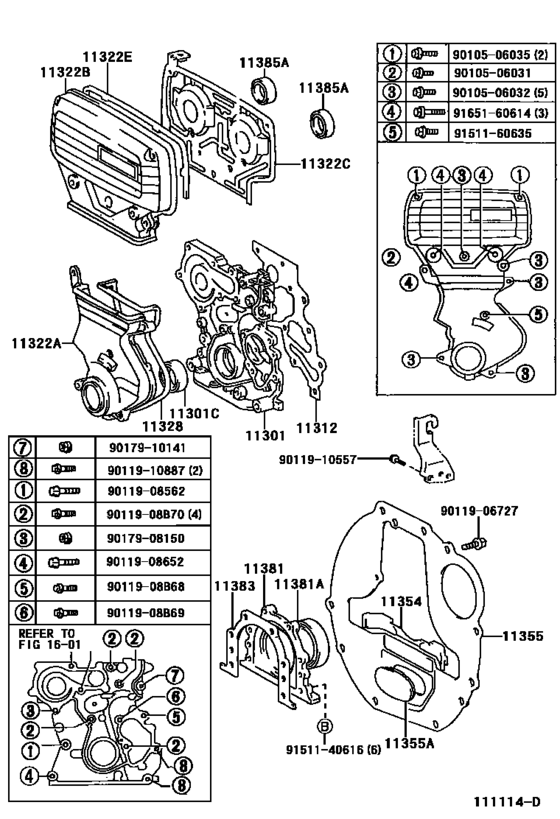

Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE) 36

#	OEM	Part name
11301	11311-79045	Case Sub-Assy, Timing Gear
11301	90311-45010	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11312	11312-70014	Gasket, Front End Plate
11312	11312-70020	Gasket, Front End Plate
11322	11321-70040	Cover, Timing Belt, No.1
11322	11322-88300	Cover, Timing Belt, No.2
11322	11323-70030	Cover, Timing Belt, No.3
11322	11329-88300	Gasket, Timing Belt Cover, No.2
11328	11328-70040	Gasket, Timing Gear Or Chain Cover
11354	11354-70010	Seal, Flywheel Housing Dust
11355	11355-70020	Plate, Rear End
11355	90950-01307	Plug, Hole(For Rear End Plate)
11381	11381-70010	Retainer, Engine Rear Oil Seal
11381	90311-75007	Seal, Engine Rear Oil
11383	11383-70011	Gasket, Engine Rear Oil Seal Retainer
11385	90311-35021	Seal, Oil(For Camshaft)
9011908	90119-08B68	Bolt
9011908	90119-08B69	New Genuine Part
9011908	90119-08B70	New Genuine Part
9010506031	90105-06031	New Genuine Part
9010506032	90105-06032	New Genuine Part
9010506032	91511-G0620	BOLT, FLANGE
9010506035	90105-06035	New Genuine Part
9011906727	90119-06727	BOLT W-WASHER
9011906727	90080-11177	New Genuine Part
9011908562	90119-08562	New Genuine Part
9011908652	90119-08652	Bolt(For Front Disc Brake Cylinder)
9011910557	90119-10557	New Genuine Part
9011910887	90119-10887	New Genuine Part
9017908150	90179-08150	NUT
9017910141	90179-10141	Nut(For Counter Gear Shaft)
9017910141	90179-10132	Nut
9151140616	91511-40616	New Genuine Part
9151160635	91511-60635	Bolt
9151160635	90080-10195	Bolt
9165160614	91651-60614	Bolt

OEM	Part name	Category
11311-79045	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11312-70014	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11312-70020	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11321-70040	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11322-88300	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11323-70030	Cover, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11328-70040	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11329-88300	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11354-70010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11355-70020	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11381-70010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
11383-70011	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90080-10195	Bolt	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90080-11177	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90105-06031	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90105-06032	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90105-06035	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-06727	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08562	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08652	Bolt(For Front Disc Brake Cylinder)	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08B68	Bolt	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08B69	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08B70	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-10557	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-10887	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-08150	NUT	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-10132	Nut	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-10141	Nut(For Counter Gear Shaft)	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90311-35021	Seal, Oil(For Camshaft)	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90311-45010	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90311-75007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
90950-01307	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
91511-40616	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
91511-60635	Bolt	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
91511-G0620	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
91651-60614	Bolt	Timing Gear Cover & Rear End Plate ([12.1995 - 02.2001] (9512-0102)1GGPE)
