Search › Model › GS151

GS151

Toyota CROWN-MAJESTA · 1995 · 6,495 parts · 399 categories

6,495 items

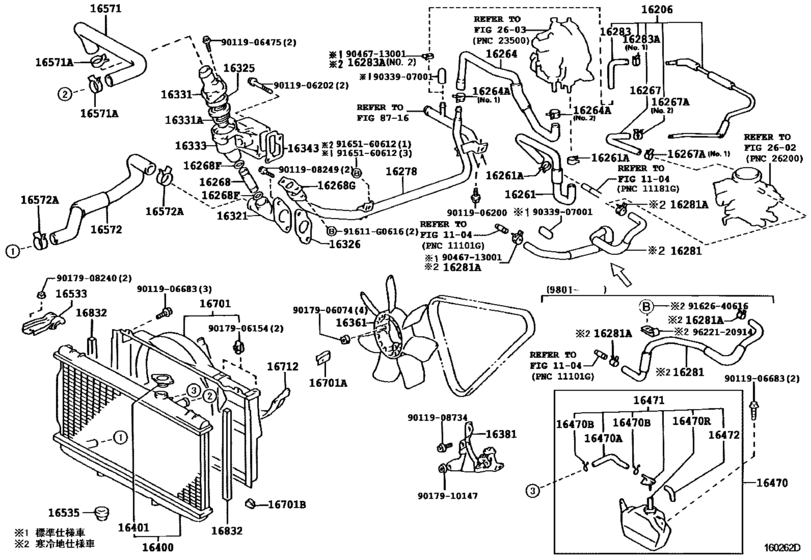

Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE) 83

#	OEM	Part name
16206	16206-70020	Pipe Sub-Assy, Water By-Pass
16261	16261-70070	Hose, Water By-Pass
16261	90467-20005	Clip(For Ventilation Hose No.2)
16261	96134-41900	Clip Or Clamp(For Ventilation Hose)
16264	16264-70080	Hose, Water By-Pass, No.2
16264	90467-22004	Clip(For Ventilation Hose No.2)
16264	90467-21010	Clip(For Ventilation Hose No.2)
16267	16267-70050	Hose, Water By-Pass, No.3
16267	90467-13039	Clamp, Hose
16267	96135-51300	Clamp, Hose
16267	90467-13051	Clamp Or Clip, Hose(For Water By-Pass Hose)
16268	16268-88302	Pipe, Water By-Pass, No.1
16268	90301-17009	Ring, O(For Water By-Pass Pipe)
16268	16347-70011	Gasket(For Water By-Pass Pipe)
16278	16278-70070	Pipe, Water By-Pass, No.2
16281	16281-70050	Hose, Water By-Pass, No.4
16281	16281-70060	Hose, Water By-Pass, No.4
16283	16283-70020	Hose, Water By-Pass, No.6
16321	16321-88301	Inlet, Water
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16326	16326-70012	Gasket, Water Inlet Housing, No.2
16331	16331-88300	Outlet, Water
16331	90916-03095	Thermostat
16333	16333-70050	Housing, Water Outlet
16343	16343-70010	Gasket, Water Outlet Housing
16343	16343-88300	Gasket, Water Outlet Housing
16361	16361-88300	Fan
16381	16381-88301	Bar, Fan Belt Adjusting
16400	16400-70550	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16401	16401-72090	Cap Sub-Assy, Radiator
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16403	16403-70550	Core Sub-Assy, Radiator
16403	16403-70520	Core Sub-Assy, Radiator
16406	16406-74520	Support(For Oil Cooler)
16442	16442-70410	Ring, O(For Radiator Upper Tank)
16462	16462-54790	Ring, O(For Radiator Upper Tank)
16470	16470-70150	Tank Assy, Radiator Reserve
16470	16472-70150	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-70090	Cap Sub-Assy, Reserve Tank
16472	85338-74040	Hose(For Radiator Drain Cock)
16491	16491-70421	Cooler, Oil(For Atm)
16491	16492-62060	Ring, O(For Atm Oil Cooler)
16491	16493-74520	Washer, Plate(For Atm Oil Cooler)
16495	16495-50030	Nut, Flare(For Atm Oil Cooler)
16495	16495-70420	Nut, Flare(For Atm Oil Cooler)
16533	16505-46050	Support, Radiator, Upper
16535	90480-40010	Support, Radiator, Lower
16535	90480-40022	Support, Radiator, Lower
16571	16571-70270	Hose, Radiator, Inlet
16571	90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-37005	Clip(For Water Inlet Hose)
16572	16572-70220	Hose, Radiator, Outlet
16572	16572-70221	Hose, Radiator, Outlet
16701	16711-70140	Shroud Sub-Assy, Fan
16701	90468-06013	Clip(For Fan Shroud)
16701	90541-11002	Cushion, Fan Shroud
16712	16712-70070	Shroud, Fan, No.2
16832	16832-70030	Seal, Fan Shroud
91611	91611-G0616	New Genuine Part
9011906200	90119-06200	New Genuine Part
9011906202	90119-06202	New Genuine Part
9011906475	90119-06475	Bolt, W/washer (For Transmission Oil Pump Cover)
9011906475	91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)
9011906683	90119-06683	New Genuine Part
9011908249	90119-08249	Bolt(For Clutch Release Cylinder Setting)
9011908249	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9011908734	90119-08734	Bolt, W/washer(For Transmission Case Cover)
9011908734	90119-08373	Bolt, W/washer(For Transmission Case Cover)
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9017906154	90179-06154	New Genuine Part
9017908240	90179-08240	New Genuine Part
9017910147	90179-10147	New Genuine Part
9033907001	90339-07001	Plug, Heater Water
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9162640616	91626-40616	New Genuine Part
9165160612	91651-60612	BOLT
9622120914	96221-20914	New Genuine Part

OEM	Part name	Category
16206-70020	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16261-70070	Hose, Water By-Pass	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16264-70080	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16267-70050	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16268-88302	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16278-70070	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16281-70050	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16281-70060	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16283-70020	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16321-88301	Inlet, Water	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16326-70012	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16331-88300	Outlet, Water	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16333-70050	Housing, Water Outlet	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16343-70010	Gasket, Water Outlet Housing	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16343-88300	Gasket, Water Outlet Housing	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16347-70011	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16361-88300	Fan	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16381-88301	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16400-70550	Radiator Assy	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16401-72090	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16403-70520	Core Sub-Assy, Radiator	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16403-70550	Core Sub-Assy, Radiator	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16405-70090	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16406-74520	Support(For Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16442-70410	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16462-54790	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16470-70150	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16472-70150	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16491-70421	Cooler, Oil(For Atm)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16492-62060	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16493-74520	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16495-50030	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16495-70420	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16505-46050	Support, Radiator, Upper	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16571-70270	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16572-70220	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16572-70221	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16711-70140	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16712-70070	Shroud, Fan, No.2	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
16832-70030	Seal, Fan Shroud	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
85338-74040	Hose(For Radiator Drain Cock)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-06200	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-06202	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-06475	Bolt, W/washer (For Transmission Oil Pump Cover)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-06683	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08249	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08373	Bolt, W/washer(For Transmission Case Cover)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90119-08734	Bolt, W/washer(For Transmission Case Cover)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-06074	Nut(For Suspension Control Oil Cooler)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-06154	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-08240	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90179-10147	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90301-17009	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90339-07001	Plug, Heater Water	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-13039	Clamp, Hose	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-13051	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-20005	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-22004	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90468-06013	Clip(For Fan Shroud)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90480-40010	Support, Radiator, Lower	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90480-40022	Support, Radiator, Lower	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90541-11002	Cushion, Fan Shroud	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
90916-03095	Thermostat	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
91611-G0616	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
91626-40616	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
91651-60612	BOLT	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
96221-20914	New Genuine Part	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([12.1995 - 02.2001] (9512-0102)1GGPE)
