GS141

Toyota CROWN-MAJESTA · 1993 · 4,738 parts · 196 categories
GS141 ×

← Back to categories

4,738 items

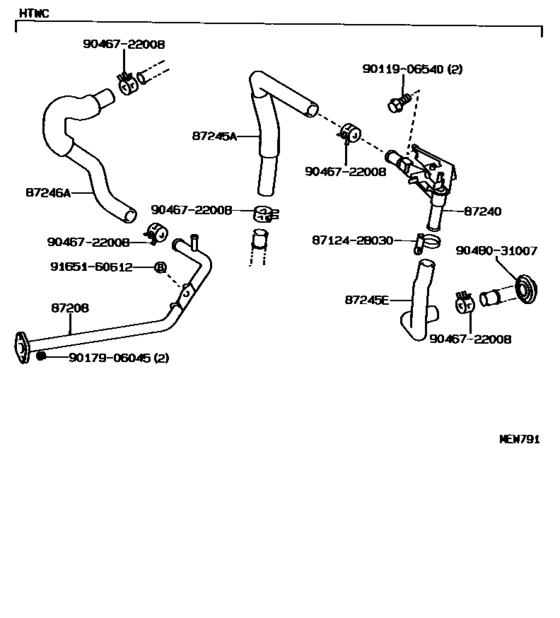

Heating & Air Conditioning - Water Piping ([08.1993 - 08.1995] (9308-9508)GS141) 15
#OEMPart name
87208 87208-22262 Pipe Sub-Assy, Heater Water
87240 87240-30520 Valve Assy, Heater Water
87240 87240-30550 Valve Assy, Heater Water
87245 87245-3A380 Hose, Heater Water, Inlet A
87245 87245-3A260 Hose, Heater Water, Inlet E
87245 87245-3A740 Hose, Heater Water, Inlet E
87246 87209-30380 Hose, Heater Water, Outlet A
87246 87245-3A360 Hose, Heater Water, Outlet A
8712428030 87124-28030 Clamp, Heater
9011906540 90119-06540 New Genuine Part
9017906045 90179-06045 New Genuine Part
9046722008 90467-22008 Clip(For Water By-Pass Hose No.1)
9046722008 90467-22011 Clip(For Water By-Pass Hose No.1)
9048031007 90480-31007 Grommet, Heater Hose
9165160612 91651-60612 BOLT
