Search › Model › GS141

GS141

Toyota CROWN-MAJESTA · 1993 · 4,738 parts · 196 categories
GS141 ×

← Back to categories

4,738 items

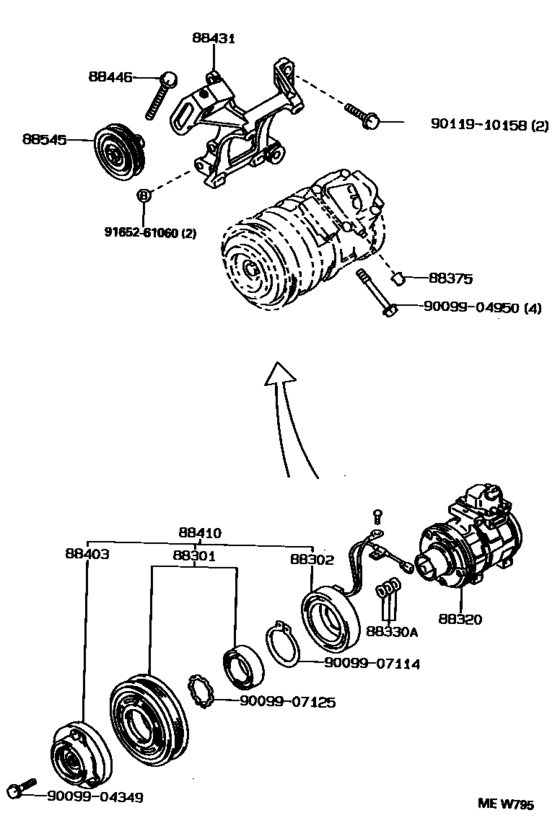

Heating & Air Conditioning - Compressor ([08.1993 - 08.1995] (9308-9508)GS141) 17
#OEMPart name
88301 88412-12160 Rotor Sub-Assy, Magnet Clutch
88302 88411-2B040 Stator Sub-Assy, Magnet Clutch
88320 88320-3A040 Compressor Assy, Cooler
88320 88320-26H91 Compressor Assy, Cooler
88330 88335-14020 Washer
88375 88375-30270 Cap, Cooler Compressor Service Valve
88403 88403-30290 Hub Sub-Assy, Magnet Clutch
88410 88410-3A040 Clutch Assy, Magnet
88431 88431-24060 Bracket, Compressor Mounting, No.1
88446 90099-04306 Bolt, Idle Pulley
88545 88440-17010 Pulley Assy, Idle
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009904950 90099-04950 BOLT
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9009907125 90099-07125 Ring, Snap
9011910158 90119-10158 New Genuine Part
9165261060 91652-61060 New Genuine Part
