Search › Model › GS141

GS141

Toyota CROWN-MAJESTA · 1993 · 4,738 parts · 196 categories

4,738 items

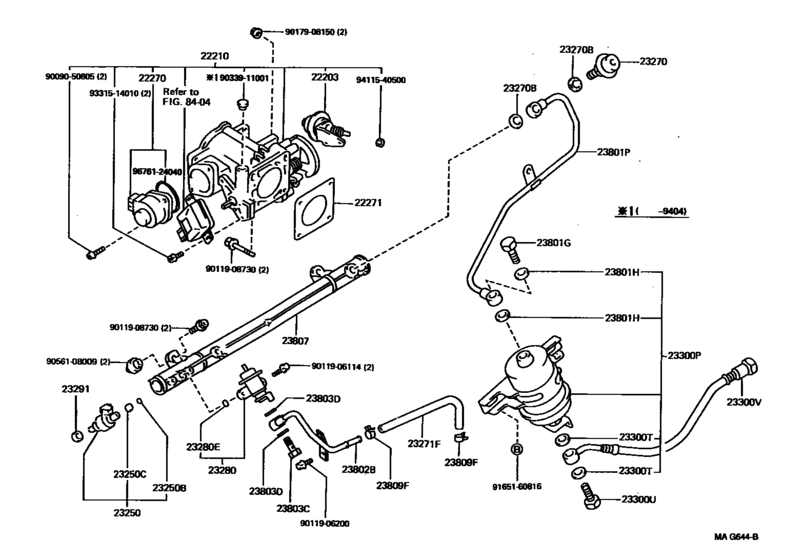

Fuel Injection System ([08.1993 - ] (9308- )1GFE) 55

#	OEM	Part name
22203	22203-70080	Dash Pot Sub-Assy(For Throttle Body)
22210	22210-70340	Body Assy, Throttle
22210	22210-70341	Body Assy, Throttle
22210	90999-92002	Air Hose (300 mm)
22270	22270-70120	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-70021	Gasket, Throttle Body
23206	23206-46081	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-50020	Filter, Fuel Pump
23220	23220-43070	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-16010	Hose, Fuel Pump
23233	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
23249	23249-74150	Rubber, Cushion(For Fuel Pump)
23250	23209-70100	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23270	23270-28030	Damper Assy, Fuel Pressure Pulsation
23270	23207-46010	Damper Assy, Fuel Pressure Pulsation
23270	23232-41081	Gasket(For Fuel Pump Hose)
23271	23271-70060	Hose, Fuel
23280	23280-70100	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23300	23300-79015	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)
23300	90923-01346	Hose, Fuel(For Fuel Inlet)
23801	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23801	23801-70060	Pipe Sub-Assy, Fuel, No.1
23802	23802-70050	Pipe Sub-Assy, Fuel, No.2
23803	90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)
23803	90430-10012	Gasket(For Turbo Oil Inlet Pipe)
23807	23807-70060	Pipe Sub-Assy, Fuel Delivery
23809	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
23809	96135-51300	Clamp, Hose
23809	90467-13065	Clip(For Fuel Pipe Support)
9009050605	90090-50605	New Genuine Part
9011906114	90119-06114	New Genuine Part
9011906114	90119-06206	New Genuine Part
9011906200	90119-06200	New Genuine Part
9011908730	90119-08730	New Genuine Part
9017908150	90179-08150	NUT
9033911001	90339-11001	New Genuine Part
9056108009	90561-08009	Spacer, No.1(For Delivery Pipe)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9331514010	93315-14010	SCREW
9338115010	93381-15010	SCREW
9411540400	94115-40400	NUT
9411540400	90076-01001	NUT
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451100400	94511-00400	WASHERSPRING
9451100500	94511-00500	Washer, Cover Set, No.2
9676124040	96761-24040	Ring, O(For Water Pump)

OEM	Part name	Category
22203-70080	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
22210-70340	Body Assy, Throttle	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
22210-70341	Body Assy, Throttle	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
22270-70120	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
22271-70021	Gasket, Throttle Body	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23206-46081	Bracket, Fuel Pump	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23207-46010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23209-70100	Injector Assy, Fuel	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23217-50020	Filter, Fuel Pump	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23220-43070	Pump Assy, Fuel	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23232-41081	Gasket(For Fuel Pump Hose)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23239-16010	Hose, Fuel Pump	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23249-74150	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23270-28030	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23271-70060	Hose, Fuel	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23280-70100	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23300-79015	Filter, Fuel(For Efi)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23801-70060	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23802-70050	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
23807-70060	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90076-01001	NUT	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90080-11396	Bolt	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90090-50605	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90119-06114	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90119-06200	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90119-06206	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90119-08730	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90179-08150	NUT	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90339-11001	New Genuine Part	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90430-10012	Gasket(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90430-12026	Gasket	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90467-13065	Clip(For Fuel Pipe Support)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90561-08009	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90923-01346	Hose, Fuel(For Fuel Inlet)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
90999-92002	Air Hose (300 mm)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
91651-60816	BOLT	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
93315-14010	SCREW	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
93381-15010	SCREW	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
94115-40400	NUT	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
94511-00400	WASHERSPRING	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
94511-00500	Washer, Cover Set, No.2	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
96135-51300	Clamp, Hose	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
96761-24040	Ring, O(For Water Pump)	Fuel Injection System ([08.1993 - ] (9308- )1GFE)
