GS126

Toyota CROWN-MAJESTA · 1983 · 4,383 parts · 178 categories
GS126 ×

← Back to categories

4,383 items

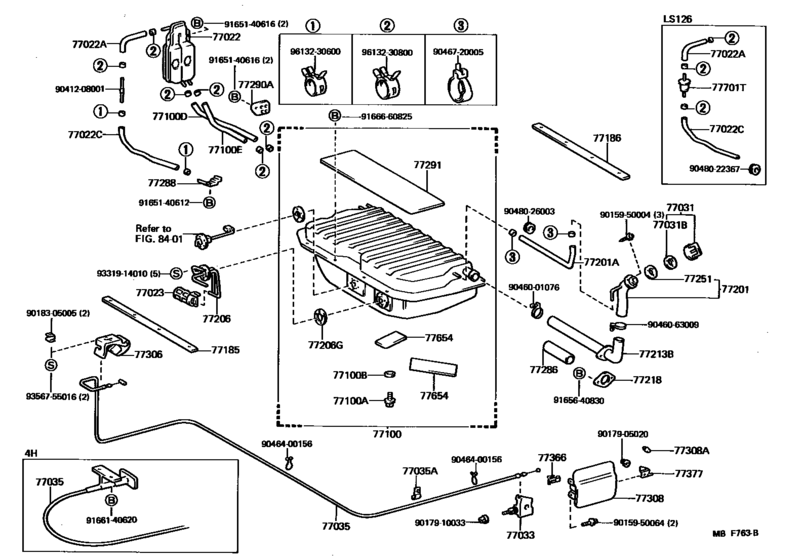

Fuel Tank & Tube ([08.1983 - ] (8308- )GS126,LS126) 73
#OEMPart name
77022 77271-91701 Separator Sub-Assy, Fuel Evaporative
77022 95332-08020 Hose, Fuel Pipe, No.1
77022 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77022 95332-06060 Hose, Fuel
77022 95333-06060 Hose, Fuel
77023 77023-30010 Filter Sub-Assy, Fuel Suction Tube
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77033 77037-32010 Lock Sub-Assy, Fuel Tank Cap
77035 77035-91701 Cable Sub-Assy, Fuel Lid Lock Control
77035 69749-12010 Clamp(For Hood Lock Control Cable)
77100 77001-39145 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 90445-14106 Hose, Fuel, No.2(For Fuel Tank)
77185 77185-91701 Shim, Fuel Tank Set, Front
77186 77186-91701 Shim, Fuel Tank Set, Rear
77201 77201-91705 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77206 77203-91707 Tube Sub-Assy, Breather
77206 83361-20030 Gasket, Fuel Tank Vent
77213 77213-91701 Hose, Fuel Tank Sub Inlet
77218 77215-91701 Plate, Fuel Tank Filler Pipe Flange
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77286 77286-91501 Protector, Fuel Tank Inlet Pipe
77288 77288-91701 Clamp, Breather Hose
77290 77290-91702 Grommet Assy, Fuel Hose
77291 77242-91501 Packing, Fuel Tank Set, Upper
77306 77051-30050-04 Lever Sub-Assy, Fuel Lid Lock Open
77306 77051-30050-05 Lever Sub-Assy, Fuel Lid Lock Open
77306 77051-30050-06 Lever Sub-Assy, Fuel Lid Lock Open
77308 77350-91703 Cover Sub-Assy, Fuel Inlet Box
77308 90541-08003 Cushion(For Inspection Opening)
77308 90541-08011 Cushion(For Inspection Opening)
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-24010 Retainer, Fuel Filler Opening Lid Lock
77654 77652-91602 Packing, Fuel Tank, Lower
9015950004 90159-50004 New Genuine Part
9015950064 90159-50064 New Genuine Part
9015950064 90159-50225 New Genuine Part
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9018305005 90183-05005 Clip, Instrument Panel Finish, Lower Center
9018305005 90183-05018 Clip, Instrument Panel Finish, Lower Center
9041208001 90412-08001 Way, 2(For Fuel Expansion Tank)
9046001076 90460-01076 New Genuine Part
9046063009 90460-63009 Clamp, Hose
9046063009 96111-10630 Clamp, Hose
9046400156 90464-00156 Clamp, No.2(For Back Door Lock Control Cable)
9046720005 90467-20005 Clip(For Ventilation Hose No.2)
9046720005 96134-41900 Clip Or Clamp(For Ventilation Hose)
9048022367 90480-22367 New Genuine Part
9048026003 90480-26003 Grommet (For Cooler Unit)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165640830 91656-40830 Bolt (For Transfer Power Take-Off Cover)
9165640830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9166140620 91661-40620 New Genuine Part
9166660825 91666-60825 New Genuine Part
9166660825 91661-60825 New Genuine Part
9331914010 93319-14010 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
