GS121

Toyota CROWN-MAJESTA · 1983 · 6,228 parts · 187 categories

6,228 items

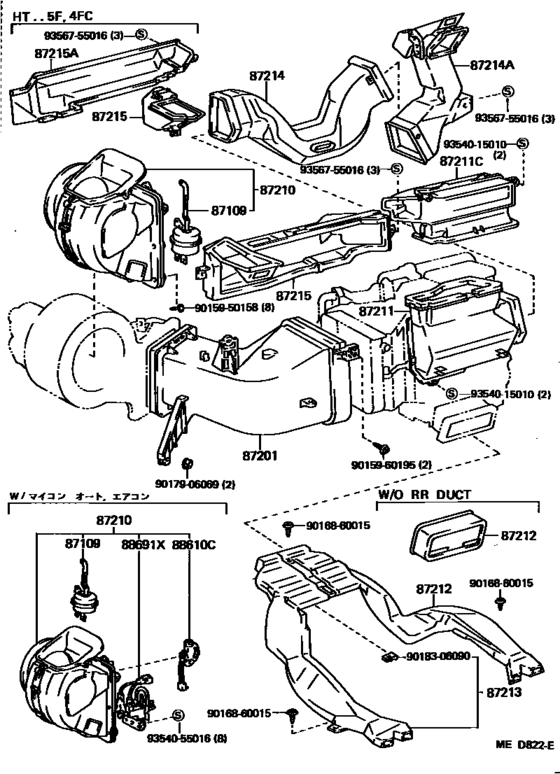

Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#) 28

#	OEM	Part name
87109	87108-30430	Diaphragm Sub-Assy, Air Door Control
87210	87210-30300	Damper Assy, Air
87210	87210-30330	Damper Assy, Air
87211	87201-30390	Duct, Air, No.1
87211	55086-30080	Duct, Air, No.4
87211	87201-30380	Duct, Air, No.1
87211	55086-30090	Duct, Air, No.4
87212	87212-30320	Duct, Air, Rear No.1
87213	87213-30250	Duct, Air, Rear No.2
87214	55085-30060	Duct, Air, Side No.1 Rh
87214	55084-30070	Duct, Air, Side No.2 Rh
87214	55085-30050	Duct, Air, Side No.1 Rh
87214	55084-30080	Duct, Air, Side No.2 Rh
87215	55087-30050	Duct, Air, Side No.1 Lh
87215	55088-30040	Duct, Air, Side No.2 Lh
87215	55087-30060	Duct, Air, Side No.1 Lh
88610	88610-30580	Switch Assy, Cooler Control
88691	88690-30530	Valve, Magnet
9015950158	90159-50158	New Genuine Part
9015960195	90159-60195	New Genuine Part
9016860015	90168-60015	New Genuine Part
9017906069	90179-06069	Direct
9017906069	90179-06274	Nut
9018306090	90183-06090	New Genuine Part
9354015010	93540-15010	SCREW, TAPPING
9354055016	93540-55016	SCREW
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
55084-30070	Duct, Air, Side No.2 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55084-30080	Duct, Air, Side No.2 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55085-30050	Duct, Air, Side No.1 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55085-30060	Duct, Air, Side No.1 Rh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55086-30080	Duct, Air, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55086-30090	Duct, Air, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55087-30050	Duct, Air, Side No.1 Lh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55087-30060	Duct, Air, Side No.1 Lh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
55088-30040	Duct, Air, Side No.2 Lh	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87108-30430	Diaphragm Sub-Assy, Air Door Control	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87201-30380	Duct, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87201-30390	Duct, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87210-30300	Damper Assy, Air	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87210-30330	Damper Assy, Air	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87212-30320	Duct, Air, Rear No.1	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
87213-30250	Duct, Air, Rear No.2	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
88610-30580	Switch Assy, Cooler Control	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
88690-30530	Valve, Magnet	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90159-50158	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90159-60195	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90168-60015	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90179-06069	Direct	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90179-06274	Nut	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
90183-06090	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
93540-15010	SCREW, TAPPING	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
93540-55016	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
93567-55016	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
93568-55016	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1983 - ] (8308- )YS120..5F ; (8308- )YS120..DLX ; ( 8308- )GS12#,LS12#,MS12#)
