Search › Model › GS120

GS120

Toyota CROWN-MAJESTA · 1983 · 5,041 parts · 186 categories
GS120 ×

← Back to categories

5,041 items

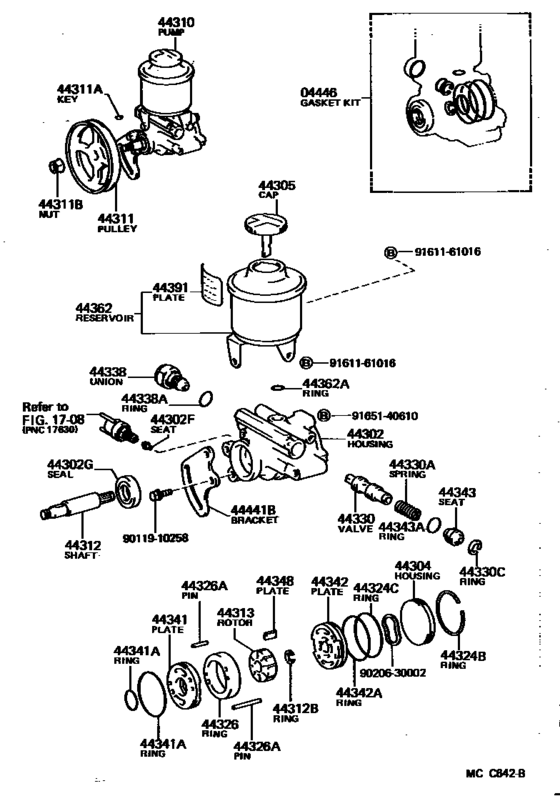

Vane Pump & Reservoir (Power Steering) ([09.1985 - ] (8509- )GS120,126..DLX,SAL,SDX,SPE,SSL) 76
#OEMPart name
4446 04446-12020 Gasket Kit, Power Steering Pump
4446 04446-27011 Gasket Kit, Power Steering Pump
44302 44302-30040 Housing Sub-Assy, Vane Pump, Front
44302 90410-05035 Seat, Union(For Valve Body Housing)
44302 90311-18007 Seal, Oil, No.2(For Vane Pump Housing)
44304 44324-12031 Housing Sub-Assy, Vane Pump, Rear
44305 44305-30020 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir
44310 44320-30241 Pump Assy, Vane
44310 44320-30301 Pump Assy, Vane
44311 44311-30060 Pulley, Vane Pump
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44311 90179-12055 Nut(For Vane Pump Pulley)
44312 44312-12030 Shaft, Vane Pump
44312 90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-12010 Rotor, Vane Pump
44313 44313-22040 Rotor, Vane Pump
44313 44313-12020 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-12030 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-12040 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-12050 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44324 90521-62002 Ring, Snap, No.1(For Vane Pump Housing)
44324 90301-52001 Ring, O(For Pump Housing Rear)
44326 44325-30100 Ring, Cam(For Vane Pump)
44326 44325-30110 Ring, Cam(For Vane Pump)
44326 44325-30120 Ring, Cam(For Vane Pump)
44326 44325-30130 Ring, Cam(For Vane Pump)
44326 44325-30140 Ring, Cam(For Vane Pump)
44326 90250-04047 Pin, Straight(For Vane Pump Cam Ring)
44326 90250-04049 Pin, Straight(For Vane Pump Cam Ring)
44330 44330-12130 Valve Assy, Flow Control
44330 44330-32670 Valve Assy, Flow Control
44330 44330-12140 Valve Assy, Flow Control
44330 44330-32680 Valve Assy, Flow Control
44330 44330-12150 Valve Assy, Flow Control
44330 44330-32690 Valve Assy, Flow Control
44330 44330-12160 Valve Assy, Flow Control
44330 44330-32700 Valve Assy, Flow Control
44330 44330-12170 Valve Assy, Flow Control
44330 44330-32710 Valve Assy, Flow Control
44330 44330-12180 Valve Assy, Flow Control
44330 44330-32720 Valve Assy, Flow Control
44330 90501-12103 Spring, Compression(For Flow Control Valve)
44330 96151-01700 Ring, Snap(For Flow Control Valve)
44338 44308-30080 Union Sub-Assy, Pressure Port
44338 90301-19003 Ring, O(For Pressure Port Union)
44338 90301-19018 Ring, O(For Pressure Port Union)
44341 44341-12030 Plate, Vane Pump Side, Front
44341 44341-32010 Plate, Vane Pump Side, Front
44341 90301-25001 Ring, O(For Vane Pump Front Side Plate)
44341 90301-25008 Ring, O(For Vane Pump Front Side Plate)
44342 44342-12021 Plate, Vane Pump Side, Rear
44342 44342-32010 Plate, Vane Pump Side, Rear
44343 44343-12010 Seat, Flow Control Spring
44343 96711-19014 O-Ring
44348 44345-12010 Plate, Vane Pump
44348 44345-12020 Plate, Vane Pump
44348 44345-12030 Plate, Vane Pump
44348 44345-12040 Plate, Vane Pump
44348 44345-12050 Plate, Vane Pump
44362 44306-30181 Reservoir Assy, Vane Pump Oil
44362 44306-30220 Reservoir Assy, Vane Pump Oil
44362 90301-12003 Ring, O(For Power Steering Suction Port)
44362 90301-11016 Ring, O(For Power Steering Suction Port)
44391 44391-14010 Plate, Power Steering Oil Reservoir Caution
44391 44391-30020 Plate, Power Steering Oil Reservoir Caution
44441 44441-30061 Bracket, Pump, Front
9011910258 90119-10258 New Genuine Part
9020630002 90206-30002 New Genuine Part
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9165140610 91651-40610 RIVET
