GS110

Toyota CROWN-MAJESTA · 1981 · 4,329 parts · 162 categories
GS110 ×

← Back to categories

4,329 items

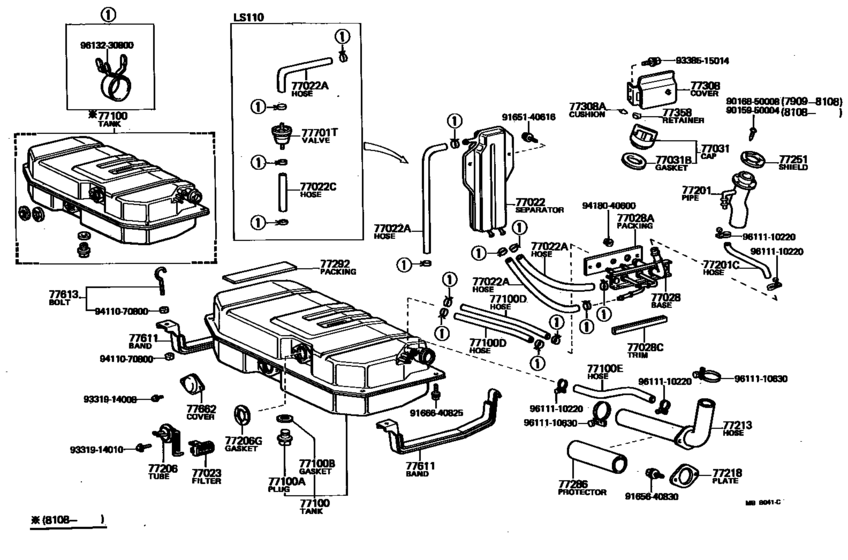

Fuel Tank & Tube ([02.1980 - 05.1982] (8002-8205)WG) 60
#OEMPart name
77022 77271-91701 Separator Sub-Assy, Fuel Evaporative
77022 95332-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77022 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77022 95332-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77022 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
77023 77023-30010 Filter Sub-Assy, Fuel Suction Tube
77028 77803-91703 Base Sub-Assy, Breather Joint, No.1
77028 77293-91701 Packing, No.1 (For Breather Joint, No.1)
77028 62593-91501 Trim, Hose Protector
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77001-39095 Tank Assy, Fuel
77100 77001-39155 Tank Assy, Fuel
77100 77001-39096 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100 95332-08080 Hose, Fuel, No.1(For Fuel Tank)
77100 95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)
77100 90445-21881 Hose, Fuel, No.2(For Fuel Tank)
77100 90445-22008 Hose, Fuel, No.1(For Fuel Tank)
77201 77201-91704 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22912 Hose, Fuel, No.1(For Fuel Tank)
77201 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77206 77203-91703 Tube Sub-Assy, Fuel Tank Suction
77206 83361-20030 Gasket, Fuel Tank Vent
77213 77213-91702 Hose, Fuel Tank Sub Inlet
77213 77213-91703 Hose, Fuel Tank Sub Inlet
77218 77215-91701 Plate, Fuel Tank Filler Pipe Flange
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77286 77286-91501 Protector, Fuel Tank Inlet Pipe
77292 77242-91501 Packing, Fuel Tank Set, Upper
77308 77350-91702 Cover Sub-Assy, Fuel Inlet Box
77308 90541-06001 Cushion(For Fuel Inlet Box Cover)
77358 77358-20010 Stopper, Fuel Inlet Box
77611 77601-91704 Band, Fuel Tank
77611 77602-91701 Band, Fuel Tank
77613 90910-07020 Bolt, Fuel Tank Band Set
77662 77662-13010 Cover, Fuel Tank Gage
9015950004 90159-50004 New Genuine Part
9016850008 90168-50008 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165640830 91656-40830 Bolt (For Transfer Power Take-Off Cover)
9165640830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9166640825 91666-40825 New Genuine Part
9166640825 91661-60825 New Genuine Part
9331914008 93319-14008 SCREW
9331914010 93319-14010 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9411070800 94110-70800 Nut, No.1 (For Center Support Bearing)
9411070800 94130-00802 Nut, No.1 (For Center Support Bearing)
9418040600 94180-40600 Retainer, Roof Window Hinge
9611110220 96111-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611110630 96111-10630 Clamp, Hose
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
