Search › Model › GRX135

GRX135

Toyota MARK-X · 2009 · 3,969 parts · 207 categories

3,969 items

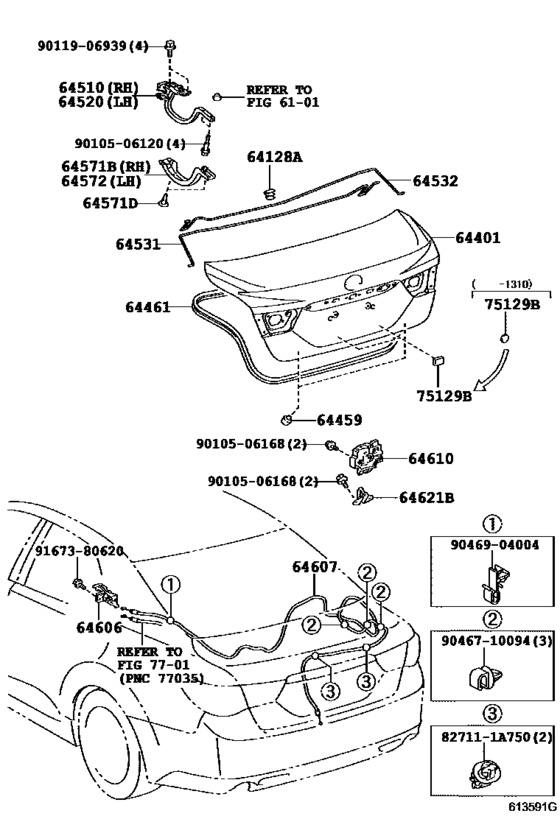

Luggage Compartment Door & Lock ([10.2009 - ] (0910- )) 30

#	OEM	Part name
64128	64128-33010	Support, Luggage Compartment Door Torsion Bar, No.2
64401	64401-22A00	Panel Sub-Assy, Luggage Compartment Door
64401	64401-22880	Panel Sub-Assy, Luggage Compartment Door
64401	64401-22890	Panel Sub-Assy, Luggage Compartment Door
64459	90541-09116	Cushion(For Luggage Compartment Door Panel)
64461	64461-22330	Weatherstrip, Luggage Compartment Door
64510	64510-22320	Hinge Assy, Luggage Compartment Door, Rh
64520	64520-22180	Hinge Assy, Luggage Compartment Door, Lh
64531	64531-22410	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-22450	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-22410	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-22450	Bar, Luggage Door Hinge Torsion, Lh
64571	64571-22040	Cover, Luggage Compartment Door Hinge, Rh
64571	90467-07076-C0	Clip, Radiator Grille
64571	90467-07076-C7	Clip, Hood Moulding
64572	64572-22020	Cover, Luggage Compartment Door Hinge, Lh
64606	64606-53010	Lever Sub-Assy, Luggage Door Lock Open
64607	64607-22440	Cable Sub-Assy, Luggage Door Lock Control
64610	64600-20030	Lock Assy, Luggage Compartment Door
64610	64600-52010	Lock Assy, Luggage Compartment Door
64621	64620-22080	Striker, Luggage Compartment Door Lock
75129	75129-30010	Cushion, Rear License Plate
75129	75129-26010	Cushion, Rear Licence Plate
827111	82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)
9010506120	90105-06120	BOLT WASHER BASED
9010506168	90105-06168	BOLT WASHER BASED
9011906939	90119-06939	Bolt, Hood Lock
9046710094	90467-10094	New Genuine Part
9046904004	90469-04004	Clamp (For Fuel Lid Lock Control Cable)
9167380620	91673-80620	Bolt

OEM	Part name	Category
64128-33010	Support, Luggage Compartment Door Torsion Bar, No.2	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64401-22880	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64401-22890	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64401-22A00	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64461-22330	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64510-22320	Hinge Assy, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64520-22180	Hinge Assy, Luggage Compartment Door, Lh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64531-22410	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64531-22450	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64532-22410	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64532-22450	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64571-22040	Cover, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64572-22020	Cover, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64600-20030	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64600-52010	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64606-53010	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64607-22440	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
64620-22080	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
75129-26010	Cushion, Rear Licence Plate	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
75129-30010	Cushion, Rear License Plate	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90105-06120	BOLT WASHER BASED	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90119-06939	Bolt, Hood Lock	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90467-07076-C0	Clip, Radiator Grille	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90467-07076-C7	Clip, Hood Moulding	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90467-10094	New Genuine Part	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90469-04004	Clamp (For Fuel Lid Lock Control Cable)	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
90541-09116	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
91673-80620	Bolt	Luggage Compartment Door & Lock ([10.2009 - ] (0910- ))
