GRX135

Toyota MARK-X · 2009 · 3,969 parts · 207 categories
GRX135 ×

← Back to categories

3,969 items

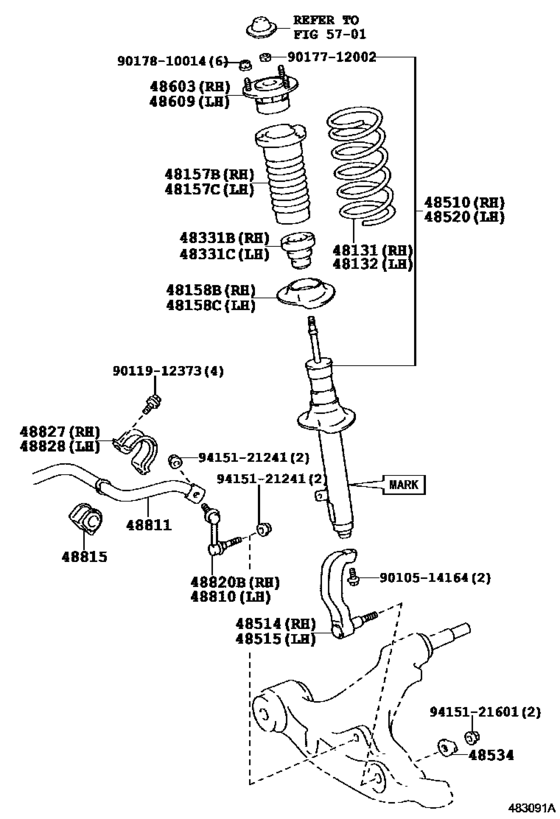

Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX135) 30
#OEMPart name
48131 48131-22B11 Spring, Front Coil, Rh
48131 48131-22B10 Spring, Front Coil, Rh
48157 48157-30090 Insulator, Front Coil Spring, Upper Rh
48157 48157-30260 Insulator, Front Coil Spring, Upper Rh
48158 48158-30020 Insulator, Front Coil Spring, Lower
48331 48331-30220 Bumper, Front Spring, Rh
48510 48510-80858 Absorber Assy, Shock, Front Rh
48510 48510-80604 Absorber Assy, Shock, Front Rh
48510 48510-80695 Absorber Assy, Shock, Front Rh
48510 48510-80728 Absorber Assy, Shock, Front Rh
48514 48503-30030 Bracket, Front Shock Absorber, Lower Rh
48515 48504-30020 Bracket, Front Shock Absorber, Lower Lh
48520 48520-80531 Absorber Assy, Shock, Front Lh
48520 48520-80318 Absorber Assy, Shock, Front Lh
48520 48520-80389 Absorber Assy, Shock, Front Lh
48520 48520-80412 Absorber Assy, Shock, Front Lh
48534 48534-30010 Plate, Front Shock Absorber Upper Bracket
48603 48609-30300 Support Sub-Assy, Front Suspension, Rh
48603 48609-30170 Support Sub-Assy, Front Suspension, Rh
48810 48810-30080 Link Assy, Front Stabilizer, Lh
48811 48811-22590 Bar, Stabilizer, Front
48815 48815-30670 Bush, Front Stabilizer Bar, No.1
48820 48820-30100 Link Assy, Front Stabilizer, Rh
48827 48824-30140 Bracket, Front Stabilizer, No.2 Rh
9010514164 90105-14164 Bolt
9011912373 90119-12373 New Genuine Part
9017712002 90177-12002 Nut
9017810014 90178-10014 Nut(For Front Suspension Support)
9415121241 94151-21241 Nut(For Front Stabilizer Link)
9415121601 94151-21601 Nut(For Front Suspension Lower Arm)
