Search › Model › GRX135

GRX135

Toyota MARK-X · 2009 · 3,969 parts · 207 categories

3,969 items

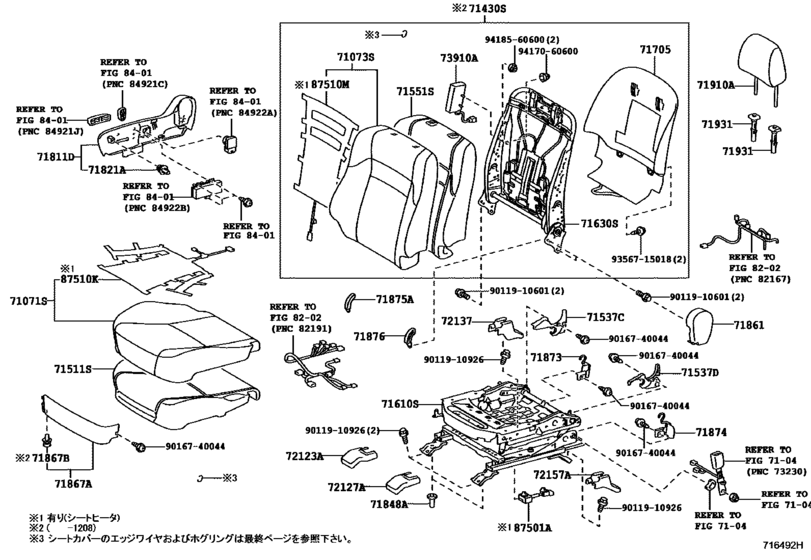

Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- )) 55

#	OEM	Part name
71071	71071-22D20-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-22D40-C1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-22B01-A5	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-22B50-A1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-22B50-C0	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-22D10-C0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-22D30-C1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-22B20-A3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-22B40-A1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-22B40-C0	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-22670	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-47010-C0	Protector, Front Seat Cushion Edge, Rh
71537	71538-47010-C0	Protector, Front Seat Cushion Edge, Lh
71551	71551-22690	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-22700	Pad, Front Seat Back, Rh(For Separate Type)
71610	71610-22500	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610	71610-22560	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-22750	Spring Assy, Front Seat Back, Rh(For Separate Type)
71630	71630-22760	Spring Assy, Front Seat Back, Rh(For Separate Type)
71705	71705-22700-C1	Board Sub-Assy, Front Seat Back, Rh
71705	71705-22700-A3	Board Sub-Assy, Front Seat Back, Rh
71811	71811-22430-C0	Shield, Front Seat Cushion, Rh
71821	90467-10161	Clip
71848	71848-33010	Cap, Rear Seat
71861	71861-22150-C0	Shield, Front Seat Cushion, Inner Rh
71867	71867-60050-C0	Shield, Front Seat Cushion, Inner No.1 Rh
71873	71873-60030	Shield, Front Seat Cushion, Lower Rh
71874	71874-60110	Shield, Front Seat Cushion, Lower Rh - FRONT SEAT CUSHION, LOWER LH
71875	71875-60210-C0	Cover, Reclining Adjuster Inside, Rh
71876	71876-60210-C0	Cover, Reclining Adjuster Inside, Lh
71910	71910-22C10-C0	Headrest Assy, Front Seat
71910	71910-22C30-C0	Headrest Assy, Front Seat
71910	71910-22A70-A6	Headrest Assy, Front Seat
71910	71910-22A71-A6	Headrest Assy, Front Seat
71910	71910-22A90-A1	Headrest Assy, Front Seat
71910	71910-22A90-C0	Headrest Assy, Front Seat
71931	71930-47020-C0	Support, Front Seat Headrest
71931	71931-47020-C0	Support, Front Seat Headrest
71931	71930-47020-A7	Support, Front Seat Headrest
71931	71931-47020-A7	Support, Front Seat Headrest
72123	72123-22110-C0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-22100-C0	Cover, Seat Track Bracket, Inner Front Rh
72137	72137-22130-C0	Cover, Seat Track, Outer Rh - SEAT TRACK OUTER, RH
72157	72157-22150-C0	Cover, Seat Track Bracket, Inner Rh
73910	73910-22050	Air Bag Assy, Front Seat, Rh
87501	87501-60040	Control Sub-Assy, Seat Heater
87501	87501-60050	Control Sub-Assy, Seat Heater, Rh
87510	87510-22120	Heater Assy, Front Seat Cushion, Rh
87510	87530-22010	Heater Assy, Front Seat Back, Rh
9011910601	90119-10601	BOLT W-WASHER
9011910926	90119-10926	New Genuine Part
9016740044	90167-40044	BOLT
9356715018	93567-15018	BOLT
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71071-22B01-A5	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71071-22B50-A1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71071-22B50-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71071-22D20-C0	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71071-22D40-C1	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71073-22B20-A3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71073-22B40-A1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71073-22B40-C0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71073-22D10-C0	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71073-22D30-C1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71511-22670	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71537-47010-C0	Protector, Front Seat Cushion Edge, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71538-47010-C0	Protector, Front Seat Cushion Edge, Lh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71551-22690	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71551-22700	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71610-22500	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71610-22560	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71630-22750	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71630-22760	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71705-22700-A3	Board Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71705-22700-C1	Board Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71811-22430-C0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71848-33010	Cap, Rear Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71861-22150-C0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71867-60050-C0	Shield, Front Seat Cushion, Inner No.1 Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71873-60030	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71874-60110	Shield, Front Seat Cushion, Lower Rh - FRONT SEAT CUSHION, LOWER LH	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71875-60210-C0	Cover, Reclining Adjuster Inside, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71876-60210-C0	Cover, Reclining Adjuster Inside, Lh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22A70-A6	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22A71-A6	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22A90-A1	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22A90-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22C10-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71910-22C30-C0	Headrest Assy, Front Seat	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71930-47020-A7	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71930-47020-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71931-47020-A7	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
71931-47020-C0	Support, Front Seat Headrest	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
72123-22110-C0	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
72127-22100-C0	Cover, Seat Track Bracket, Inner Front Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
72137-22130-C0	Cover, Seat Track, Outer Rh - SEAT TRACK OUTER, RH	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
72157-22150-C0	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
73910-22050	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
87501-60040	Control Sub-Assy, Seat Heater	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
87501-60050	Control Sub-Assy, Seat Heater, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
87510-22120	Heater Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
87530-22010	Heater Assy, Front Seat Back, Rh	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
90119-10601	BOLT W-WASHER	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
90119-10926	New Genuine Part	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
90167-40044	BOLT	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
90467-10161	Clip	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
93567-15018	BOLT	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
94170-60600	NUT CAP	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([10.2009 - ] ｳﾝﾃﾝｾｷ,ﾊﾟﾜｰｼｰﾄ (0910- ))
