Search › Model › GRX133
GRX133

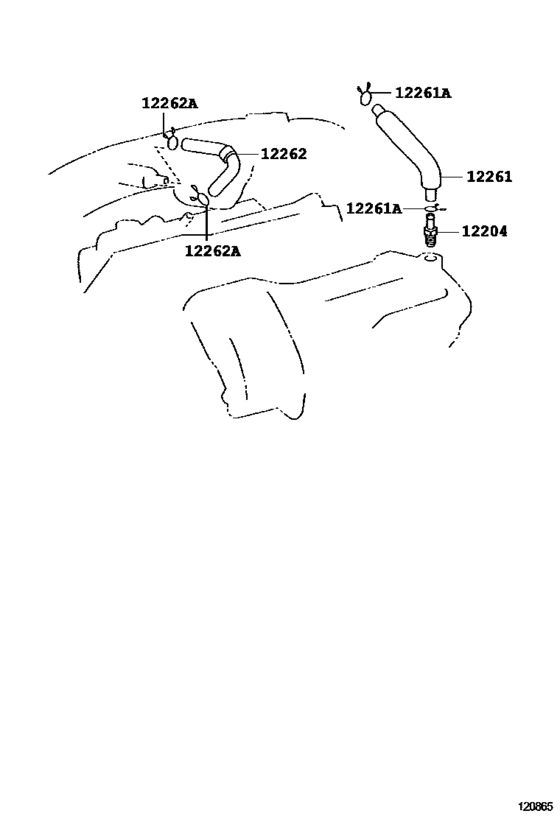

Ventilation Hose ([10.2009 - ] (0910- )) 5
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-31050 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-31060 | Hose, Ventilation |
| 12261 | 90467-14017 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-31050 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-31050 | Valve Sub-Assy, Ventilation | Ventilation Hose ([10.2009 - ] (0910- )) |
| 12261-31060 | Hose, Ventilation | Ventilation Hose ([10.2009 - ] (0910- )) |
| 12262-31050 | Hose, Ventilation, No.2 | Ventilation Hose ([10.2009 - ] (0910- )) |
| 90467-14017 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2009 - ] (0910- )) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2009 - ] (0910- )) |
