Search › Model › GRX133

GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories

4,568 items

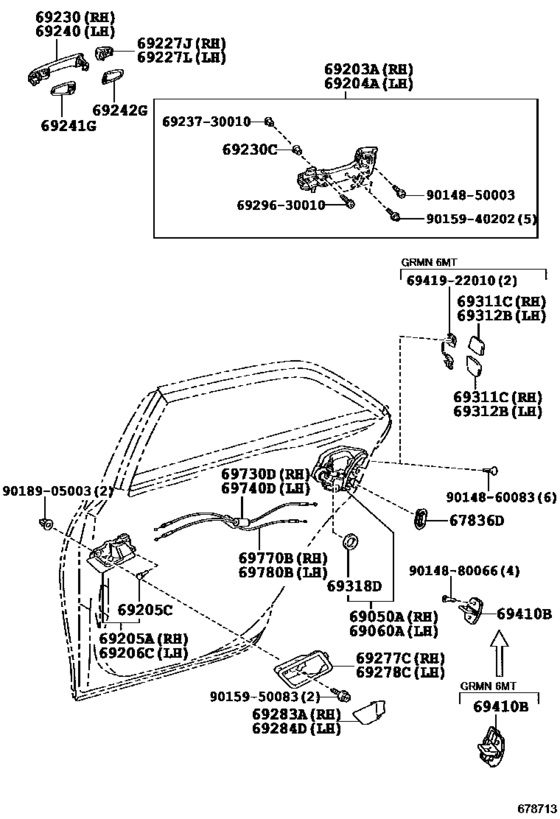

Rear Door Lock & Handle ([10.2009 - ] (0910- )) 51

#	OEM	Part name
67836	67836-33030	Cover, Rear Door Lock Child Protection, Rh
67836	67836-14010	Cover, Rear Door Lock Child Protection, Rh
69050	69050-33120	Lock Assy, Rear Door W/motor, Rh
69060	69060-33120	Lock Assy, Rear Door W/motor, Lh
69203	69203-22070	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-22070	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-30200-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69206	69206-30200-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69250-30050-A1	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-B0	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-C0	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-C4	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-D3	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-J2	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-B2	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-D1	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-E1	Cover, Rear Door Outside Handle, Rh
69227	69250-30050-J4	Cover, Rear Door Outside Handle, Rh
69230	69210-22260-A0	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-B0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69230	69210-22260-C0	Handle Assy, Front Door Outside, Lh - REAR DOOR OUTSIDE, RH
69230	69210-22260-C4	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-D3	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-J0	Handle Assy, Rear Door Outside, Rh
69230	69239-30010	Bush(For Rear Door Outside Handle)
69230	69210-22260-B1	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-D0	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-E0	Handle Assy, Rear Door Outside, Rh
69230	69210-22260-J3	Handle Assy, Rear Door Outside, Rh
69241	69241-30110	Pad, Rear Door Outside Handle, Front
69241	69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69242	69242-30090	Pad, Front Door Outside Handle, Rear
69242	69242-30091	Pad, Front Door Outside Handle, Rear
69277	69287-22040-C0	Bezel, Rear Door Inside Handle, Rh
69278	69288-22020-C0	Bezel, Rear Door Inside Handle, Lh
69283	69283-20020-C0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-20010-C0	Plug, Front Door Inside Handle Bezel, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-33010	Plate Assy, Front Door Lock Striker
69730	69730-22100	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-22110	Cable Assy, Rear Door Inside Locking, Rh
6923730010	69237-30010	Nut, Front Door Handle
6929630010	69296-30010	Screw, Door Inside Handle
6941922010	69419-22010	Stop, Slide Door Open, Lh
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9015940202	90159-40202	SCREW WWASHER
9015950083	90159-50083	SCREW
9018905003	90189-05003	CLIP

OEM	Part name	Category
67836-14010	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
67836-33030	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69050-33120	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69060-33120	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69203-22070	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69204-22070	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69205-30200-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69206-30200-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-B0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-B1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-C0	Handle Assy, Front Door Outside, Lh - REAR DOOR OUTSIDE, RH	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-C4	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-D0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-D3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-E0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-J0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69210-22260-J3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69237-30010	Nut, Front Door Handle	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69239-30010	Bush(For Rear Door Outside Handle)	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69241-30110	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69241-30111	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69242-30090	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69242-30091	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-A1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-B0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-C4	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-D1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-D3	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-E1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-J2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69250-30050-J4	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69283-20020-C0	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69284-20010-C0	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69287-22040-C0	Bezel, Rear Door Inside Handle, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69288-22020-C0	Bezel, Rear Door Inside Handle, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69296-30010	Screw, Door Inside Handle	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69410-33010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69419-22010	Stop, Slide Door Open, Lh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69730-22100	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
69770-22110	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90148-60083	SCREW HEXALOBULAR	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90148-80066	SCREW HEXALOBULAR	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90159-40202	SCREW WWASHER	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90159-50083	SCREW	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90189-05003	CLIP	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([10.2009 - ] (0910- ))
