GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories
GRX133 ×

← Back to categories

4,568 items

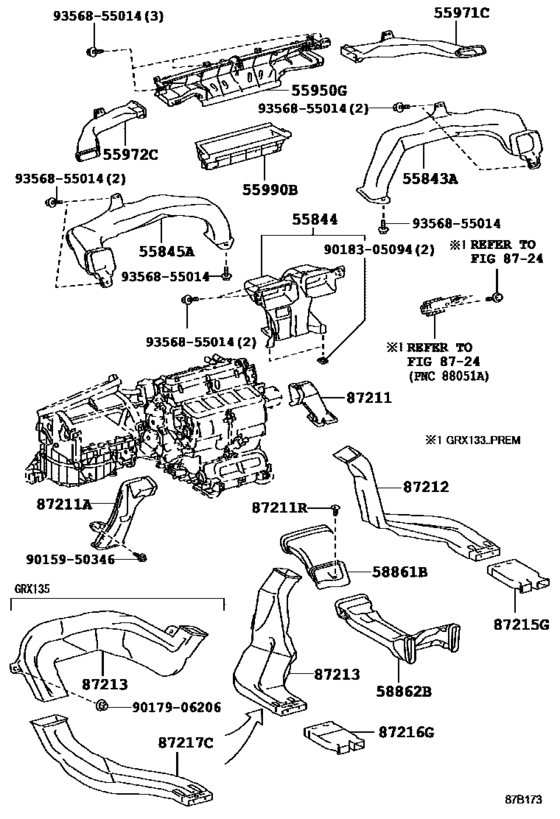

Heating & Air Conditioning - Control & Air Duct ([10.2009 - 08.2012] ｴｱﾀﾞｸﾄ (0910-1208)) 26
#OEMPart name
55843 55843-22170 Duct, Heater To Register, No.1
55844 55844-22190 Duct, Heater To Register, No.2
55844 55844-22200 Duct, Heater To Register, No.2
55845 55845-22240 Duct, Heater To Register, No.3
55845 55845-22241 Duct, Heater To Register, No.3
55950 55950-22130 Nozzle Assy, Defroster
55971 55971-22110 Duct, Side Defroster Nozzle, No.1
55972 55972-22100 Duct, Side Defroster Nozzle, No.2
55990 55990-22020 Nozzle Assy, Defroster, Lower
58861 58861-30110 Duct, Console Box, No.1
58862 58862-22050 Duct, Console Box, No.2
87211 87211-30340 Duct Sub-Assy, Air, No.1
87211 87211-30341 Duct, Air, No.1
87211 87211-30590 Duct Sub-Assy, Air, No.2
87211 90467-08186-C0 Clip(For Front Bumper), No.1
87211 90467-08186-C3 Clip(For Front Bumper), No.1
87212 87212-30430 Duct, Air, Rear No.1
87212 87212-30431 Duct, Air, Rear No.1
87213 87213-30370 Duct, Air, Rear No.1
87213 87213-30371 Duct, Air, Rear No.1
87215 87215-51010 Duct, Air, Rear No.3
87216 87216-51010 Duct, Air, Rear No.4
9015950346 90159-50346 SCREW
9017906206 90179-06206 Nut
9018305094 90183-05094 NUT
9356855014 93568-55014 Screw
