GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories
GRX133 ×

← Back to categories

4,568 items

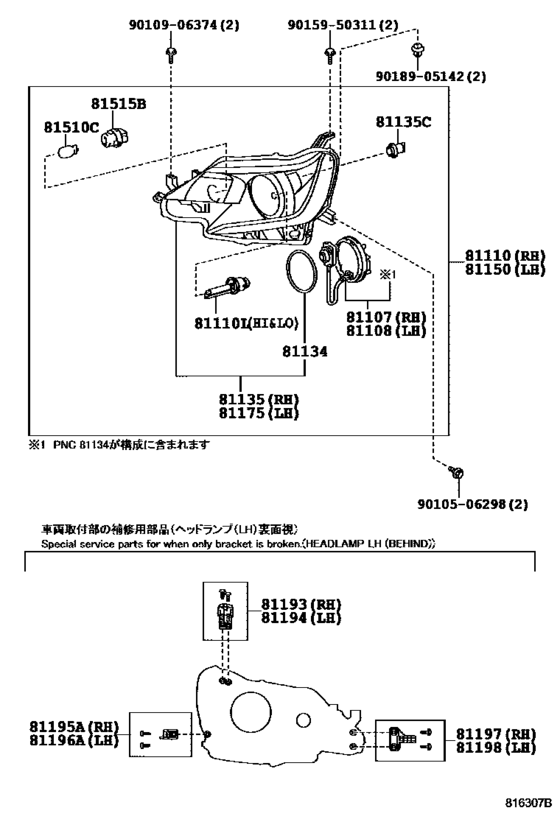

Headlamp ([08.2012 - 11.2016] ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ,ｱﾘ(AFS) (1208-1611)GRX133..PREM) 33
#OEMPart name
81107 81107-75020 Computer Sub-Assy, Headlamp Light Control
81110 81110-22B20 Headlamp Assy, Rh
81110 81110-22B30 Headlamp Assy, Rh
81110 81110-22B80 Headlamp Assy, Rh
81110 90981-20024 Bulb, Discharge Headlamp
81134 90075-23002 Gasket, Headlamp - HEADLAMP HOUSING
81135 81145-22B20 Unit Assy, Headlamp, Rh
81135 81145-22B30 Unit Assy, Headlamp, Rh
81135 81145-22B80 Unit Assy, Headlamp, Rh
81135 81135-22B70 Cover, Headlamp Back, No.1
81150 81150-22B20 Headlamp Assy, Lh
81150 81150-22B30 Headlamp Assy, Lh
81150 81150-22B80 Headlamp Assy, Lh
81175 81185-22B20 Unit Assy, Headlamp, Lh
81175 81185-22B30 Unit Assy, Headlamp, Lh
81175 81185-22B80 Unit Assy, Headlamp, Lh
81193 81193-22030 Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81193 81193-22040 Retainer, Headlamp Protector, Upper Rh
81194 81194-22030 Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81194 81194-22040 Retainer, Headlamp Protector, Upper Lh
81195 81195-22030 Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH NO.2
81196 81196-22030 Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH NO.2
81197 81197-22020 Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH
81197 81197-22030 Bracket, Headlamp, Lower Rh
81198 81198-22020 Bracket, Headlamp, Lwr Lh
81198 81198-22030 Bracket, Headlamp, Lwr Lh
81510 90981-15021 Bulb (For Front Turn Signal Lamp)
81515 90075-60028 Socket, Headlamp, Bulb
9010506298 90105-06298 BOLT FLANGE
9010906374 90109-06374 BOLT
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9018905142 90189-05142 GROMMET, SCREW
