Search › Model › GRX133
GRX133

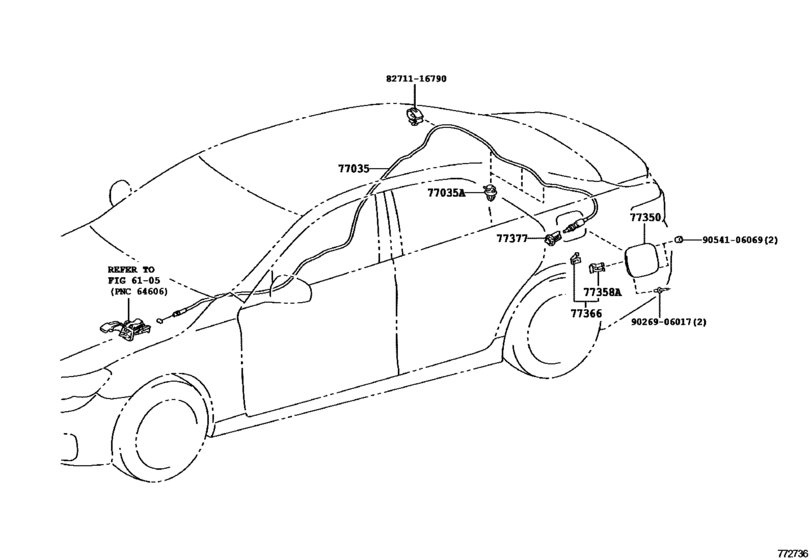

Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) 9
| # | OEM | Part name |
|---|---|---|
| 77035 | 77035-22280 | Cable Sub-Assy, Fuel Lid Lock Control |
| 77035 | 90469-06005 | Clamp(For Hood Lock Control Cable) |
| 77350 | 77350-22220 | Lid Assy, Fuel Filler Opening |
| 77358 | 77358-30060 | Stopper, Fuel Filler Opening Lid |
| 77366 | 77360-30080 | Spring Assy, Fuel Filler Opening Lid |
| 77377 | 77377-12060 | Retainer, Fuel Filler Opening Lid Lock |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| 9026906017 | 90269-06017 | RIVET |
| 9054106069 | 90541-06069 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 77035-22280 | Cable Sub-Assy, Fuel Lid Lock Control | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 77350-22220 | Lid Assy, Fuel Filler Opening | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 77358-30060 | Stopper, Fuel Filler Opening Lid | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 77360-30080 | Spring Assy, Fuel Filler Opening Lid | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 77377-12060 | Retainer, Fuel Filler Opening Lid Lock | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 82711-16790 | Clamp, Wiring Harness | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 90269-06017 | RIVET | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 90469-06005 | Clamp(For Hood Lock Control Cable) | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
| 90541-06069 | CUSHION | Fuel Tank & Tube ([10.2009 - ] ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ (0910- )) |
