Search › Model › GRX133

GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories

4,568 items

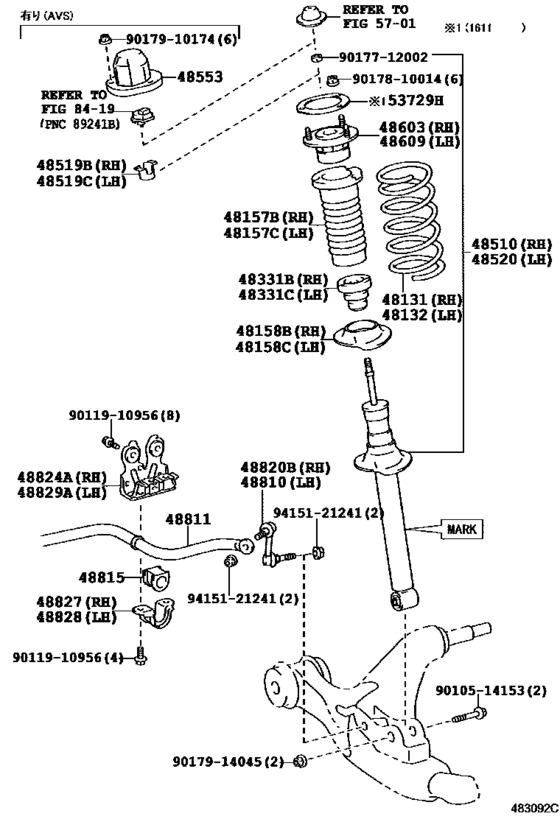

Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133) 46

#	OEM	Part name
48131	48131-22A91	Spring, Front Coil, Rh
48131	48131-22A60	Spring, Front Coil, Rh
48131	48131-22B00	Spring, Front Coil, Rh
48131	48131-22B01	Spring, Front Coil, Rh
48157	48157-30080	Insulator, Front Coil Spring, Upper Rh
48157	48157-30250	Insulator, Front Coil Spring, Upper
48158	48158-30020	Insulator, Front Coil Spring, Lower
48331	48331-30230	Bumper, Front Spring, Rh
48510	48510-80857	Absorber Assy, Shock, Front Rh
48510	48510-80503	Absorber Assy, Shock, Front Rh
48510	48510-80552	Absorber Assy, Shock, Front Rh
48510	48510-80592	Absorber Assy, Shock, Front Rh
48510	48510-80677	Absorber Assy, Shock, Front Rh
48510	48510-80694	Absorber Assy, Shock, Front Rh
48510	48510-80833	Absorber Assy, Shock, Front Rh
48519	48519-30030	Bracket, Actuator Support, Front Rh
48520	48520-80530	Absorber Assy, Shock, Front Lh
48520	48520-80236	Absorber Assy, Shock, Front Lh
48520	48520-80274	Absorber Assy, Shock, Front Lh
48520	48520-80307	Absorber Assy, Shock, Front Lh
48520	48520-80373	Absorber Assy, Shock, Front Lh
48520	48520-80388	Absorber Assy, Shock, Front Lh
48520	48520-80507	Absorber Assy, Shock, Front Lh
48553	48553-30100	Cap, Shock Absorber, Upper
48603	48609-30130	Support Sub-Assy, Front Suspension, Rh
48603	48609-22110	Support Sub-Assy, Front Suspension
48603	48609-22140	Support Sub-Assy, Front Suspension, Rh
48810	48810-30070	Link Assy, Front Stabilizer, Lh
48811	48811-30760	Bar, Stabilizer, Front
48811	48811-22580	Bar, Stabilizer, Front
48811	48811-22610	Bar, Stabilizer, Front
48815	48815-30670	Bush, Front Stabilizer Bar, No.1
48815	48815-22270	Bush, Front Stabilizer Bar, No.1
48815	48815-30551	Bush, Front Stabilizer Bar, No.1
48820	48820-30090	Link Assy, Front Stabilizer, Rh
48824	48809-30130	Bracket, Front Stabilizer
48824	48809-30090	Bracket, Front Stabilizer, No.1 Rh
48827	48824-30130	Bracket, Front Stabilizer, No.2 Rh
53729	53729-53020	Reinforcement, Front Spring Support, No.3
9010514153	90105-14153	Bolt(For Front Shock Absorber Bracket Lower)
9011910956	90119-10956	New Genuine Part
9017712002	90177-12002	Nut
9017810014	90178-10014	Nut(For Front Suspension Support)
9017910174	90179-10174	Nut(For Front Pneumatic Cylinder)
9017914045	90179-14045	Nut(For Front Shock Absorber Bracket Lower)
9415121241	94151-21241	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48131-22A60	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48131-22A91	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48131-22B00	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48131-22B01	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48157-30080	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48157-30250	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48158-30020	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48331-30230	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80503	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80552	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80592	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80677	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80694	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80833	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48510-80857	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48519-30030	Bracket, Actuator Support, Front Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80236	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80274	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80307	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80373	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80388	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80507	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48520-80530	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48553-30100	Cap, Shock Absorber, Upper	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48609-22110	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48609-22140	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48609-30130	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48809-30090	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48809-30130	Bracket, Front Stabilizer	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48810-30070	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48811-22580	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48811-22610	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48811-30760	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48815-22270	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48815-30551	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48815-30670	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48820-30090	Link Assy, Front Stabilizer, Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
48824-30130	Bracket, Front Stabilizer, No.2 Rh	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
53729-53020	Reinforcement, Front Spring Support, No.3	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90105-14153	Bolt(For Front Shock Absorber Bracket Lower)	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90119-10956	New Genuine Part	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90177-12002	Nut	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90178-10014	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90179-10174	Nut(For Front Pneumatic Cylinder)	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
90179-14045	Nut(For Front Shock Absorber Bracket Lower)	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
94151-21241	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([10.2009 - ] (0910- )GRX130,133)
