GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories

← Back to categories

4,568 items

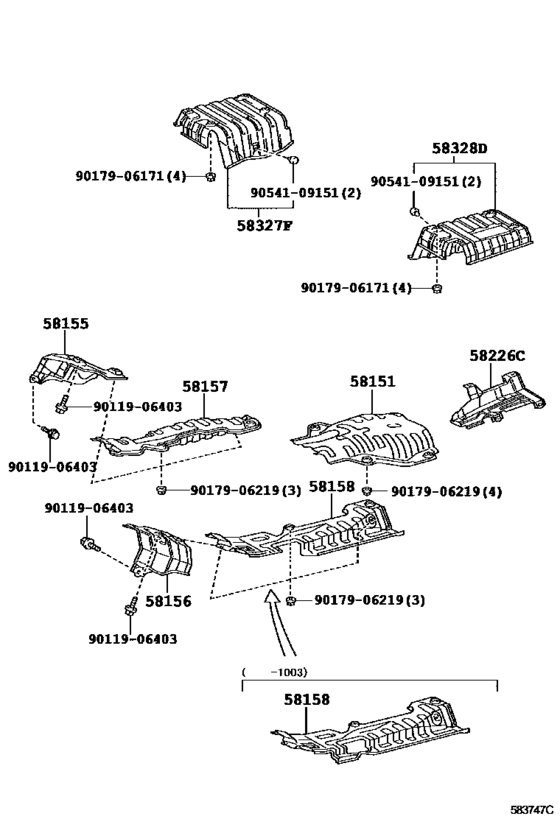

Floor Insulator ([10.2009 - ] (0910- )GRX130,133) 17

#	OEM	Part name
58151	58151-30130	Insulator, Front Floor Heat, No.1
58155	58155-30040	Insulator, Front Floor Heat, No.3
58156	58156-30080	Insulator, Front Floor Heat, No.4
58157	58157-30073	Insulator, Front Floor Heat, No.5
58157	58157-30071	Insulator, Front Floor Heat, No.5
58157	58157-30072	Insulator, Front Floor Heat, No.5
58158	58158-30063	Insulator, Front Floor Heat, No.6
58158	58158-30061	Insulator, Front Floor Heat, No.6
58158	58158-30062	Insulator, Front Floor Heat, No.6
58226	58226-30040	Plate, Air Guide, Outside Rh
58327	58327-30053	Insulator, Main Muffler Heat
58328	58328-30034	Insulator, Main Muffler Heat, Lh
9011906403	90119-06403	BOLT W-WASHER
9017906171	90179-06171	Nut, Cap(For Cylinder Head Cover)
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9054109151	90541-09151	Cushion(For Luggage Compartment Door Panel)

OEM	Part name	Category
58151-30130	Insulator, Front Floor Heat, No.1	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58155-30040	Insulator, Front Floor Heat, No.3	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58156-30080	Insulator, Front Floor Heat, No.4	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58157-30071	Insulator, Front Floor Heat, No.5	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58157-30072	Insulator, Front Floor Heat, No.5	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58157-30073	Insulator, Front Floor Heat, No.5	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58158-30061	Insulator, Front Floor Heat, No.6	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58158-30062	Insulator, Front Floor Heat, No.6	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58158-30063	Insulator, Front Floor Heat, No.6	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58226-30040	Plate, Air Guide, Outside Rh	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58327-30053	Insulator, Main Muffler Heat	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
58328-30034	Insulator, Main Muffler Heat, Lh	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
90119-06403	BOLT W-WASHER	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
90179-06171	Nut, Cap(For Cylinder Head Cover)	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
90179-06219	Nut	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
90182-A0005	Nut	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
90541-09151	Cushion(For Luggage Compartment Door Panel)	Floor Insulator ([10.2009 - ] (0910- )GRX130,133)
