Search › Model › GRX133

GRX133

Toyota MARK-X · 2009 · 4,568 parts · 220 categories

4,568 items

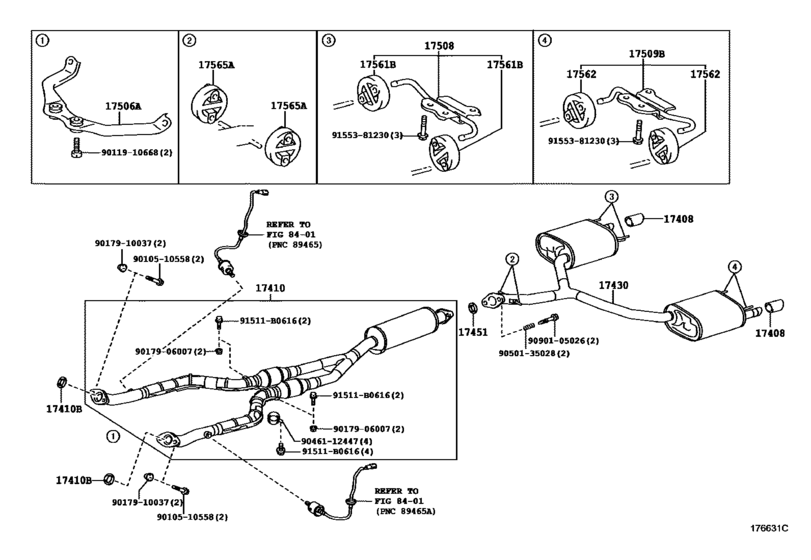

Exhaust Pipe ([10.2009 - 08.2012] (0910-1208)) 25

#	OEM	Part name
17408	17408-74080	Baffle Sub Assy, Exhaust Tail Pipe
17410	17410-31A70	Pipe Assy, Exhaust, Front
17410	17410-31A72	Pipe Assy, Exhaust, Front
17410	17410-31A71	Pipe Assy, Exhaust, Front
17410	17410-31F70	Pipe Assy, Exhaust, Front
17410	90917-06078	Gasket, Exhaust Pipe
17410	90917-A6003	Gasket, Exhaust Pipe
17430	17430-31880	Pipe Assy, Exhaust, Tail
17451	17451-31011	Gasket, Exhaust Pipe
17451	17451-31012	Gasket, Exhaust Pipe, Center
17508	17508-31110	Support Sub-Assy, Exhaust Pipe, No.3
17509	17509-31070	Support, Exhaust Pipe No.4
17561	17565-22030	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
9010510558	90105-10558	BOLT FLANGE
9011910668	90119-10668	BOLT WWASHER
9017906007	90179-06007	Nut
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9046112447	90461-12447	Clamp, Exhaust Pipe
9050135028	90501-35028	Spring, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9155381230	91553-81230	BOLT FLANGE

OEM	Part name	Category
17408-74080	Baffle Sub Assy, Exhaust Tail Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17410-31A70	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17410-31A71	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17410-31A72	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17410-31F70	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17430-31880	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17451-31011	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17451-31012	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17508-31110	Support Sub-Assy, Exhaust Pipe, No.3	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17509-31070	Support, Exhaust Pipe No.4	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90080-10164	BOLT, FLANGE	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90105-10558	BOLT FLANGE	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90119-10668	BOLT WWASHER	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90179-06007	Nut	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90179-10037	NUT	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90179-10128	NUT	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90461-12447	Clamp, Exhaust Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90501-35028	Spring, Exhaust Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
91511-B0616	BOLT, FLANGE	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))
91553-81230	BOLT FLANGE	Exhaust Pipe ([10.2009 - 08.2012] (0910-1208))

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 220
Collected: 2026-08-04
