GRX122

Toyota REIZ · 2005 · 4,241 parts · 192 categories

← Back to categories

4,241 items

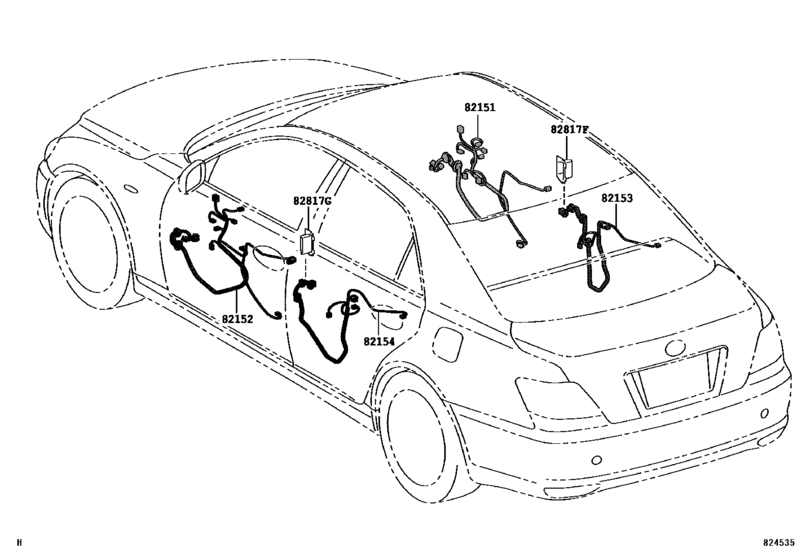

Wiring & Clamp ([10.2005 - ] DOOR (0510- )) 14

#	OEM	Part name
82151	82151-0P010	Wire, Front Door, Rh
82151	82151-0P020	Wire, Front Door, Rh
82151	82151-0P051	Wire, Front Door, Rh
82151	82151-0P061	Wire, Front Door, Rh
82151	82151-0P011	Wire, Front Door, Rh
82152	82152-0P010	Wire, Front Door, Lh
82152	82152-0P031	Wire, Front Door, Lh
82152	82152-0P011	Wire, Front Door, Lh
82153	82153-0P010	Wire, Rear Door, No.1
82153	82153-0P011	Wire, Rear Door, No.1
82154	82154-0P010	Wire, Rear Door, No.2
82154	82154-0P011	Wire, Rear Door, No.2
82817	82817-1A761	Protector, Wiring Harness, No.1
82817	82817-1A830	Protector, Wiring Harness, No.1

OEM	Part name	Category
82151-0P010	Wire, Front Door, Rh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82151-0P011	Wire, Front Door, Rh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82151-0P020	Wire, Front Door, Rh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82151-0P051	Wire, Front Door, Rh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82151-0P061	Wire, Front Door, Rh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82152-0P010	Wire, Front Door, Lh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82152-0P011	Wire, Front Door, Lh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82152-0P031	Wire, Front Door, Lh	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82153-0P010	Wire, Rear Door, No.1	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82153-0P011	Wire, Rear Door, No.1	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82154-0P010	Wire, Rear Door, No.2	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82154-0P011	Wire, Rear Door, No.2	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82817-1A761	Protector, Wiring Harness, No.1	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))
82817-1A830	Protector, Wiring Harness, No.1	Wiring & Clamp ([10.2005 - ] DOOR (0510- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 192
Collected: 2026-08-04
