Search › Model › GRX122

GRX122

Toyota REIZ · 2005 · 4,241 parts · 192 categories
GRX122 ×

← Back to categories

4,241 items

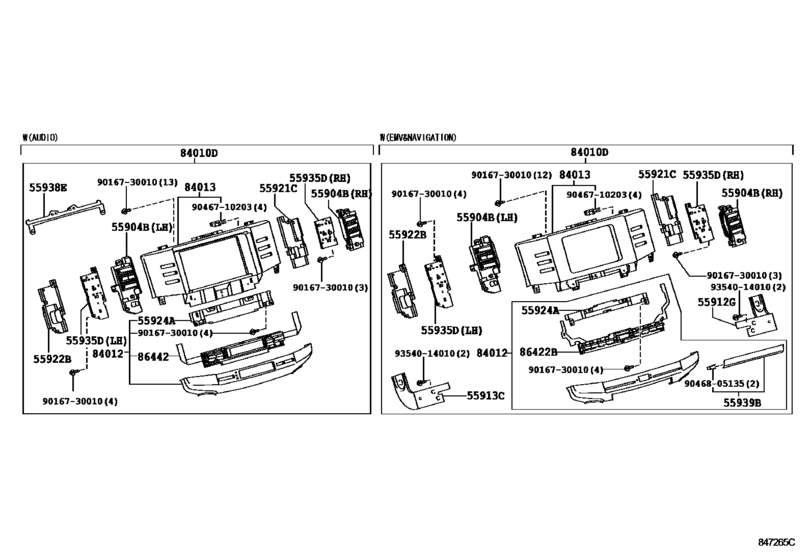

Switch & Relay & Computer ([10.2005 - ] INSTRUMENT PANEL 2/2 (0510- )) 31
#OEMPart name
55904 55904-22130 Housing Sub-Assy, Heater Control
55904 55904-22140 Housing Sub-Assy, Heater Control
55904 55904-22150 Housing Sub-Assy, Heater Control
55904 55904-22160 Housing Sub-Assy, Heater Control
55912 55912-22100 Bracket, Heater Control Base, Rh
55913 55913-22030 Bracket, Heater Control Base, Lh
55921 55921-22100 Retainer, Heater Control, Rh
55922 55922-22020 Retainer, Heater Control, Lh
55924 55924-22020 Retainer, Heater Control, Lower
55924 55924-22040 Retainer, Heater Control, Lower
55935 55935-22050 Circuit, Center Cluster Module
55935 55935-22060 Circuit, Center Cluster Module
55935 55935-22070 Circuit, Center Cluster Module
55935 55935-22080 Circuit, Center Cluster Module
55938 55938-22030 Bracket, Heater Control
55939 55939-22090 Ornament, Heater Control
55939 55939-22110 Ornament, Heater Control
84010 84010-22050 Control & Panel Assy, Integration
84010 84010-22060 Control & Panel Assy, Integration
84010 84010-22061 Control & Panel Assy, Integration
84012 84012-22040 Control & Panel Sub-Assy, Integration
84012 84012-22050 Control & Panel Sub-Assy, Integration
84012 84012-22051 Control & Panel Sub-Assy, Integration
84013 84013-22040 Panel Sub-Assy, Integration
84013 84013-22050 Panel Sub-Assy, Integration
86422 86422-22040 Board, Navigation Switch
86442 86442-22020 Board, Heater Control Switch
9016730010 90167-30010 SCREW PAN TAPPING
9046710203 90467-10203 Direct
9046805135 90468-05135 Clip, Instrument Panel
9354014010 93540-14010 Clip, Headlining Retainer
